RX300 S8
Upgrade and Maintenance Manual 363
Front panel and external connectors
13.1.1.2 Removing the front panel module

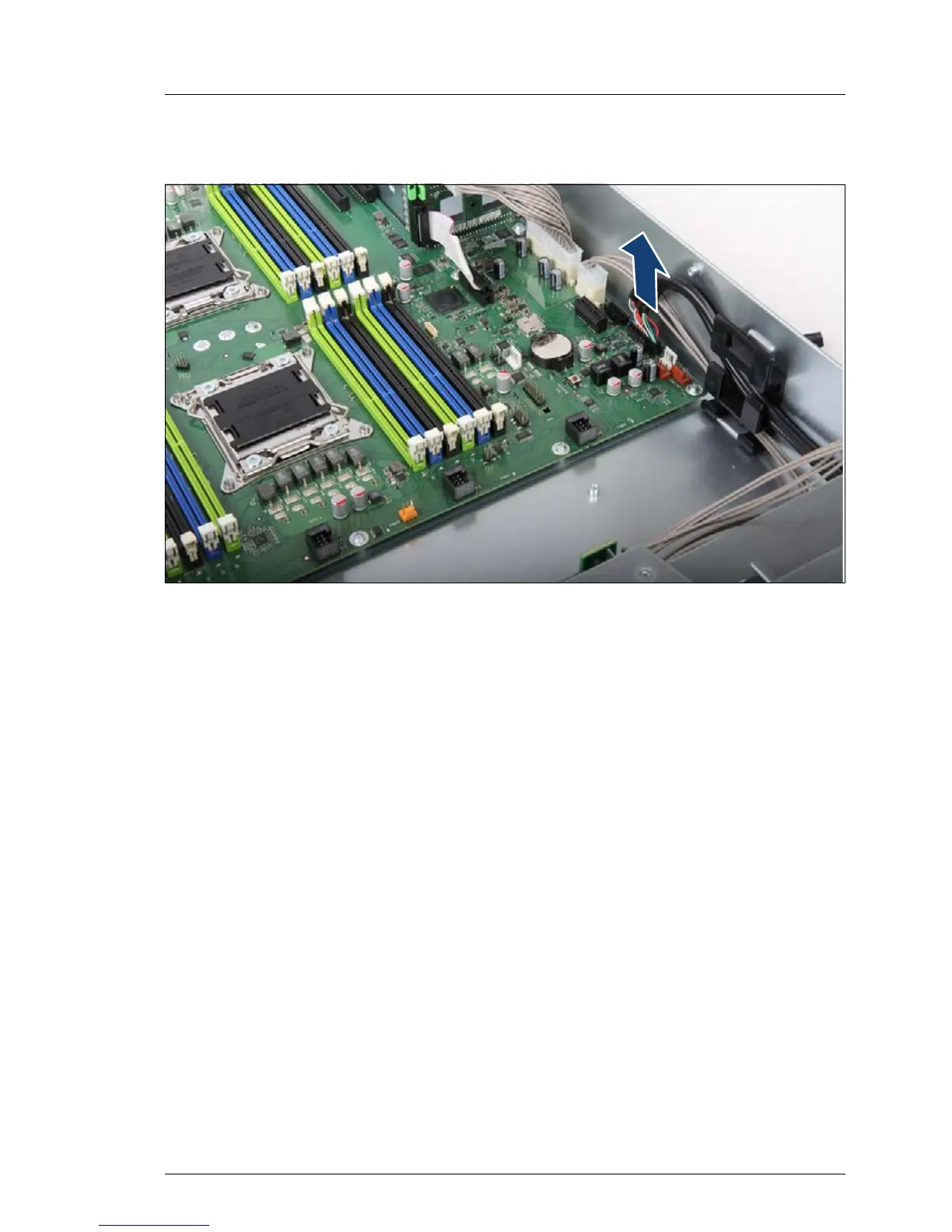

Figure 229: Disconnecting the front panel cable
Ê Disconnect the front panel cable from the system board.
Ê If applicable, disconnect the front VGA cable from the system board see
section "Removing the front VGA cable" on page 373.
