458 Upgrade and Maintenance Manual
RX300 S8
Conversion configurations
Ê Route the cables as shown.
15.3.4 Configuration 3 to configuration 6
Replacing the front cages

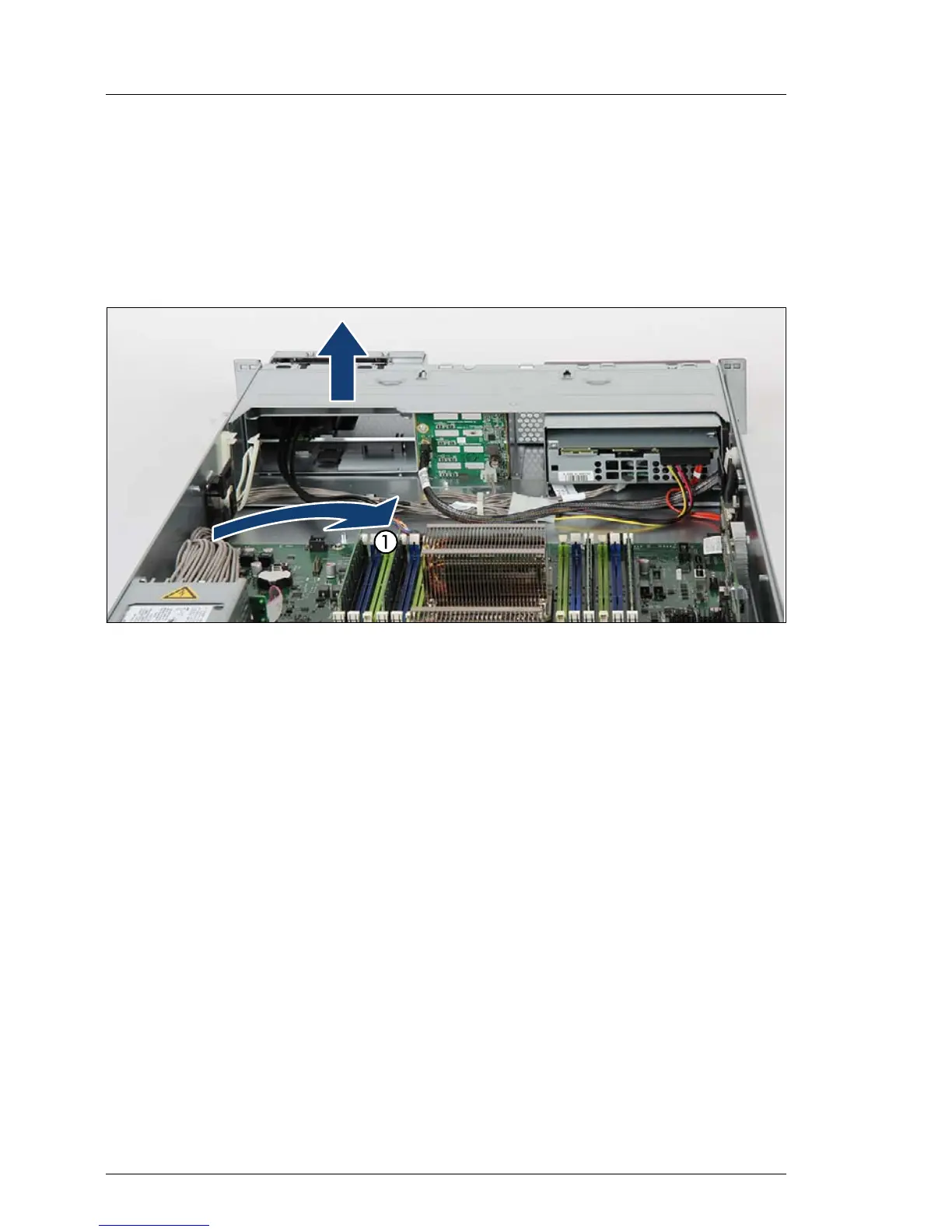

Figure 314: Replacing front cages (A)
Ê Remove the front panel cable from the system board.
Ê If applicable remove the optional front LAN and front VGA cables from the
system board see sections "Removing the front LAN connector" on
page 386 and "Removing the front VGA connector" on page 373.
Ê Remove the front panel cage.
