410
Upgrade and Mai
ntenance Man
ual
RX300
S8
System board and co
mponents
14.3.3.3
Inst
allin
g the new UFM

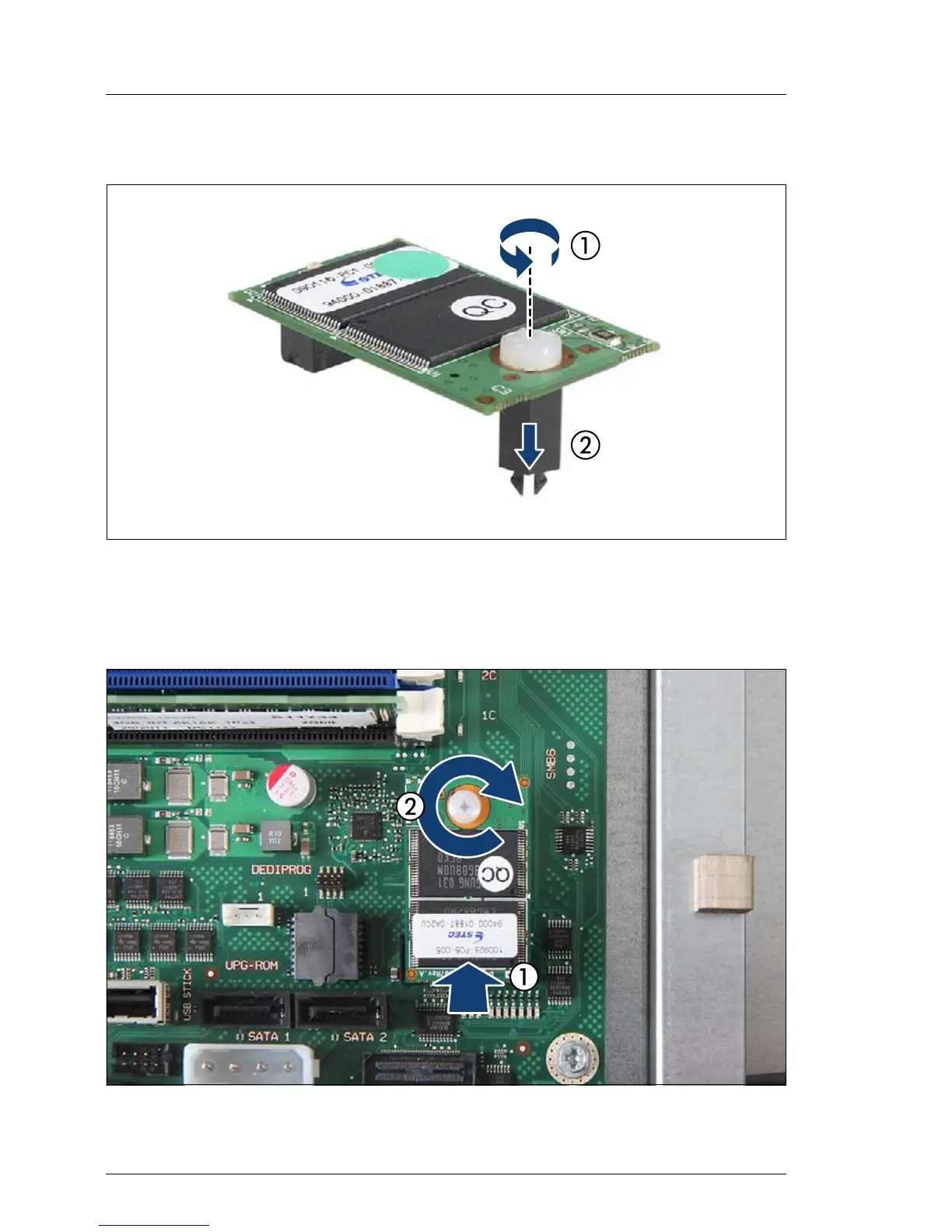

Figure 270: Prep
aring the new
UFM
Ê
Remove the nylon screw from the new UFM (1)
.
Ê
Remove the UFM spacer (2).
Figure 271: Instal
ling the UFM (B)
409
411
