226 Upgrade and Maintenance Manual
RX300 S8
Expansion cards and backup units
9.6.5.6 Installing the air duct with an FBU

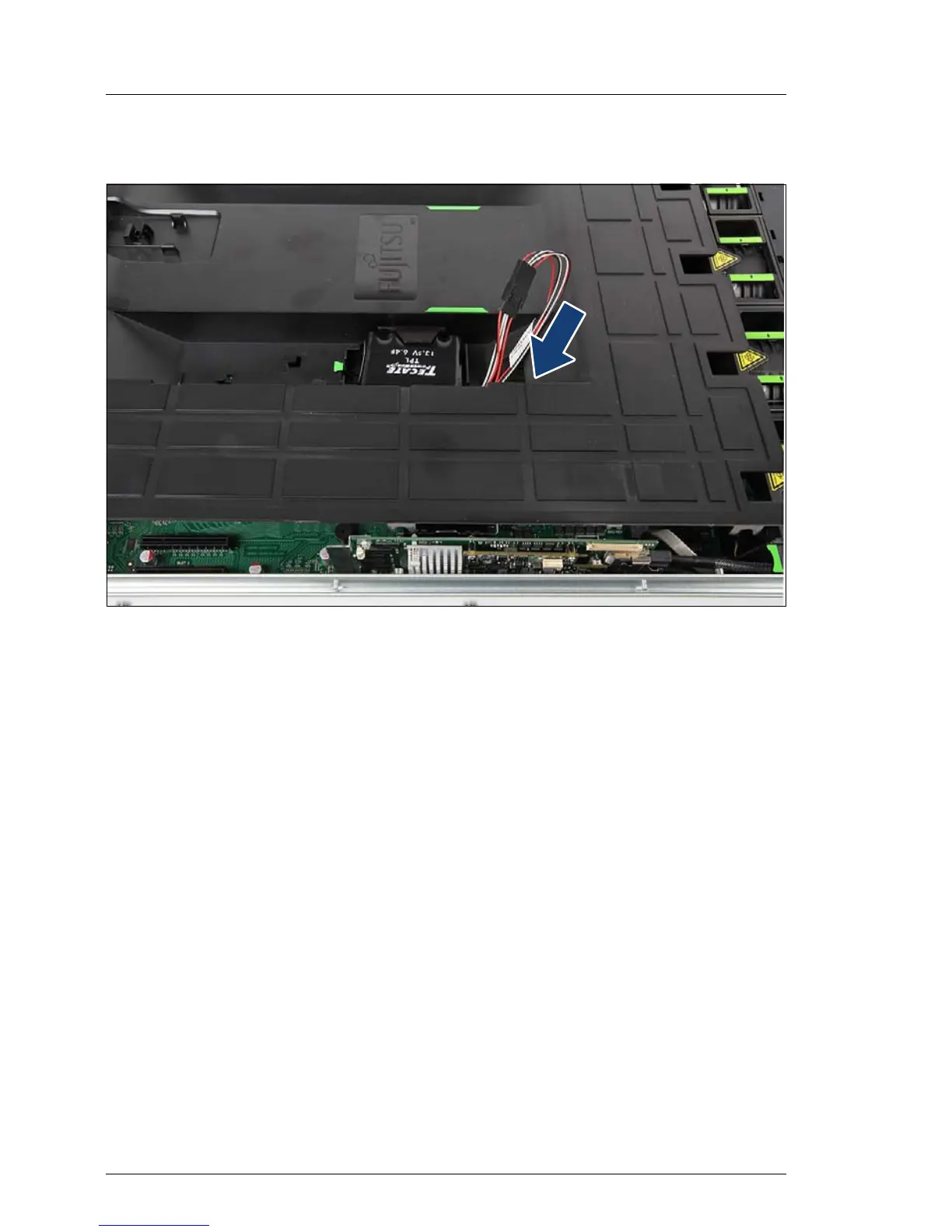

Figure 115: Connecting the FBU to the controller
Ê Insert the air duct.
Ê Thread the FBU cable through the gap in the air duct.
Ê Tilt up the air duct a little.
