RX300 S8
Upgrade and Maintenance Manual 371
Front panel and external connectors

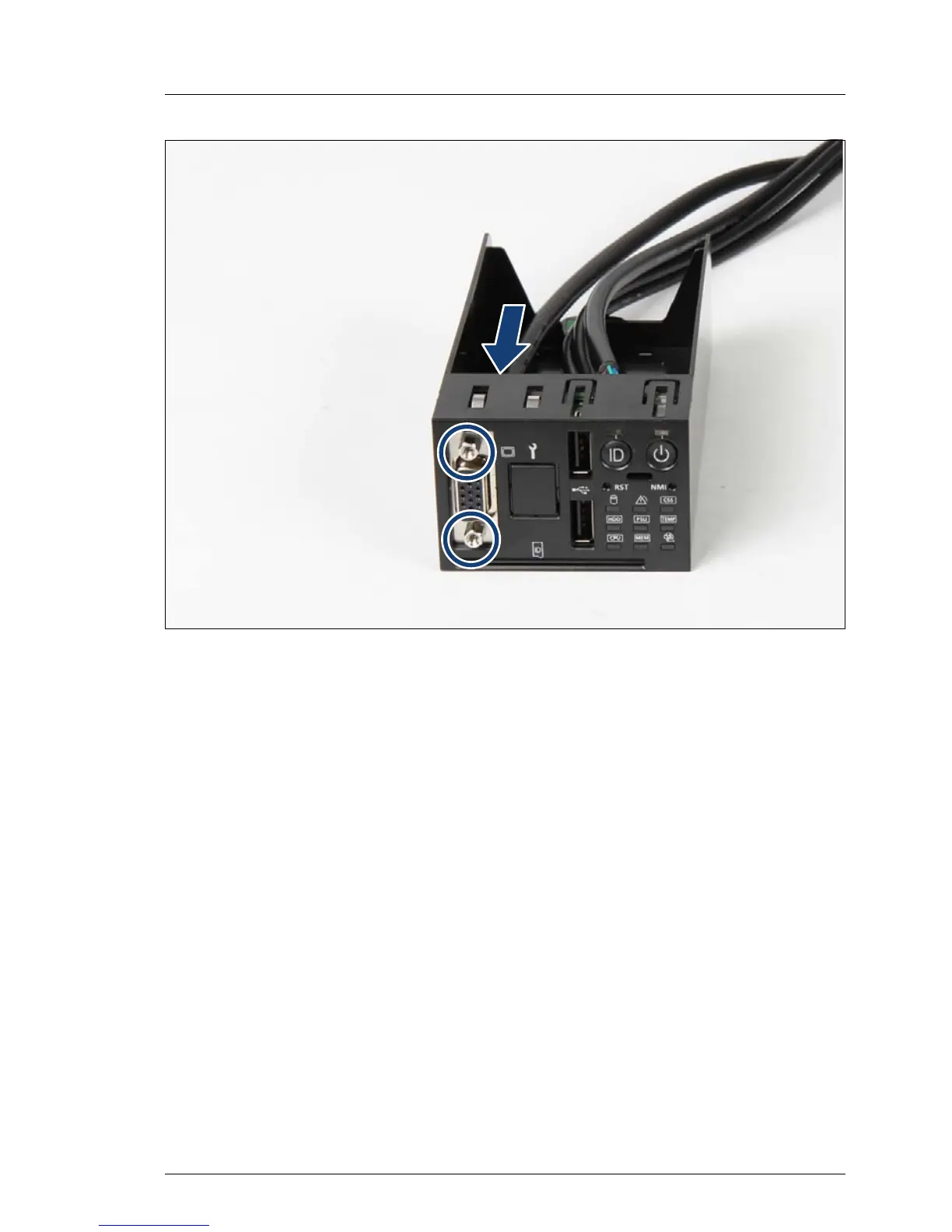

Figure 237: Mounting the front VGA connector
Ê Insert the front VGA connector with the longer connector side to the left.
Ê Fasten the front VGA connector in the front panel module with two hexagon
bolts.
13.2.1.5 Re-installing the front panel module
Ê "Installing the front panel module" on page 365
