278 Upgrade and Maintenance Manual
RX300 S8
Processors
11.3.2.2 Removing the processor

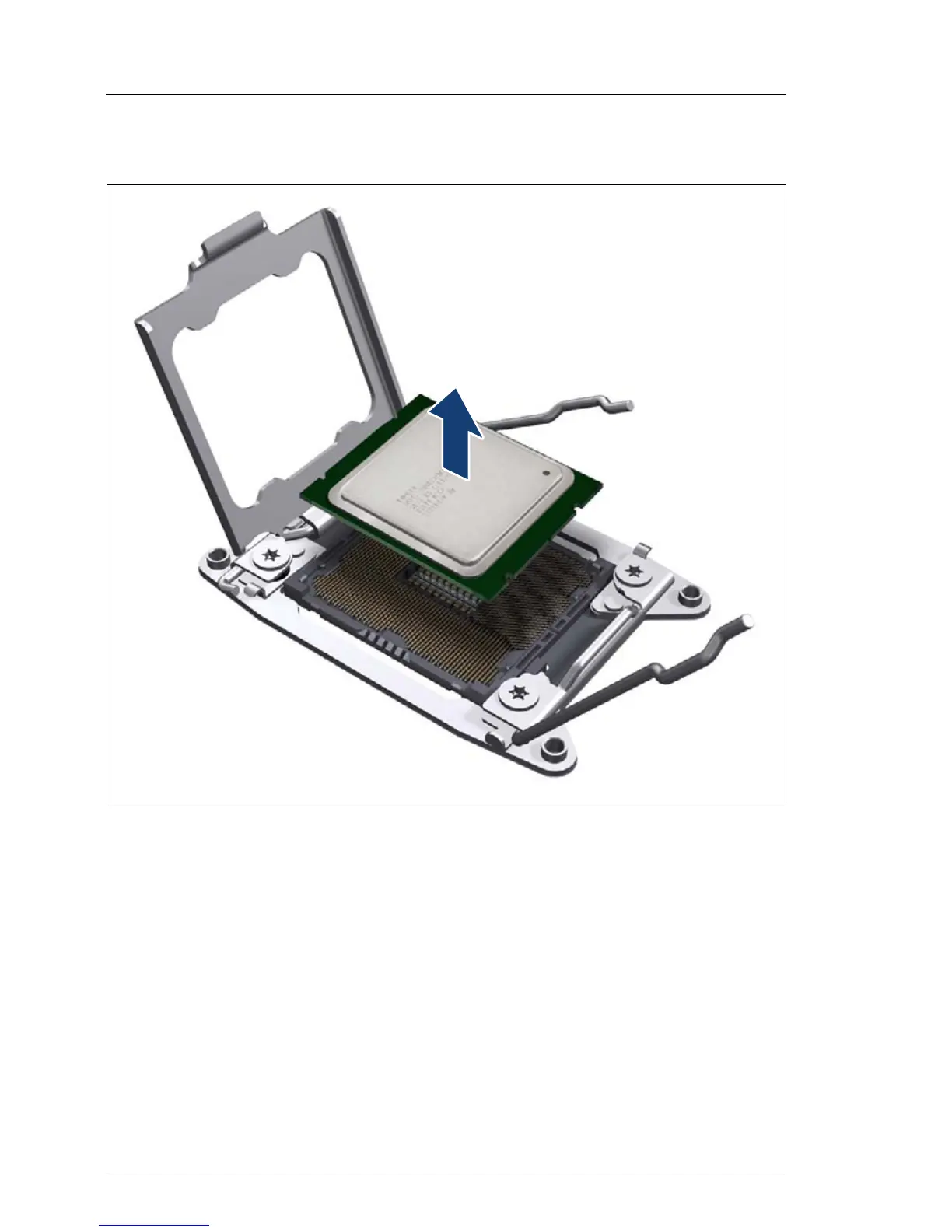

Figure 151: Removing the processor
Ê Carefully remove the defective processor from its socket in a vertical motion.
V CAUTION!
Be careful not to touch or bend the spring contacts on the processor
socket.
Ê Thoroughly clean residual thermal paste from the processor surface using a
lint-free cloth.
