Fujitsu PRIMERGY RX300 S8

RX300 S8 Upgrade and Maintenance Manual 149
Hard disk drives / solid state drives
7.4.2.2 Removing the HDD cage

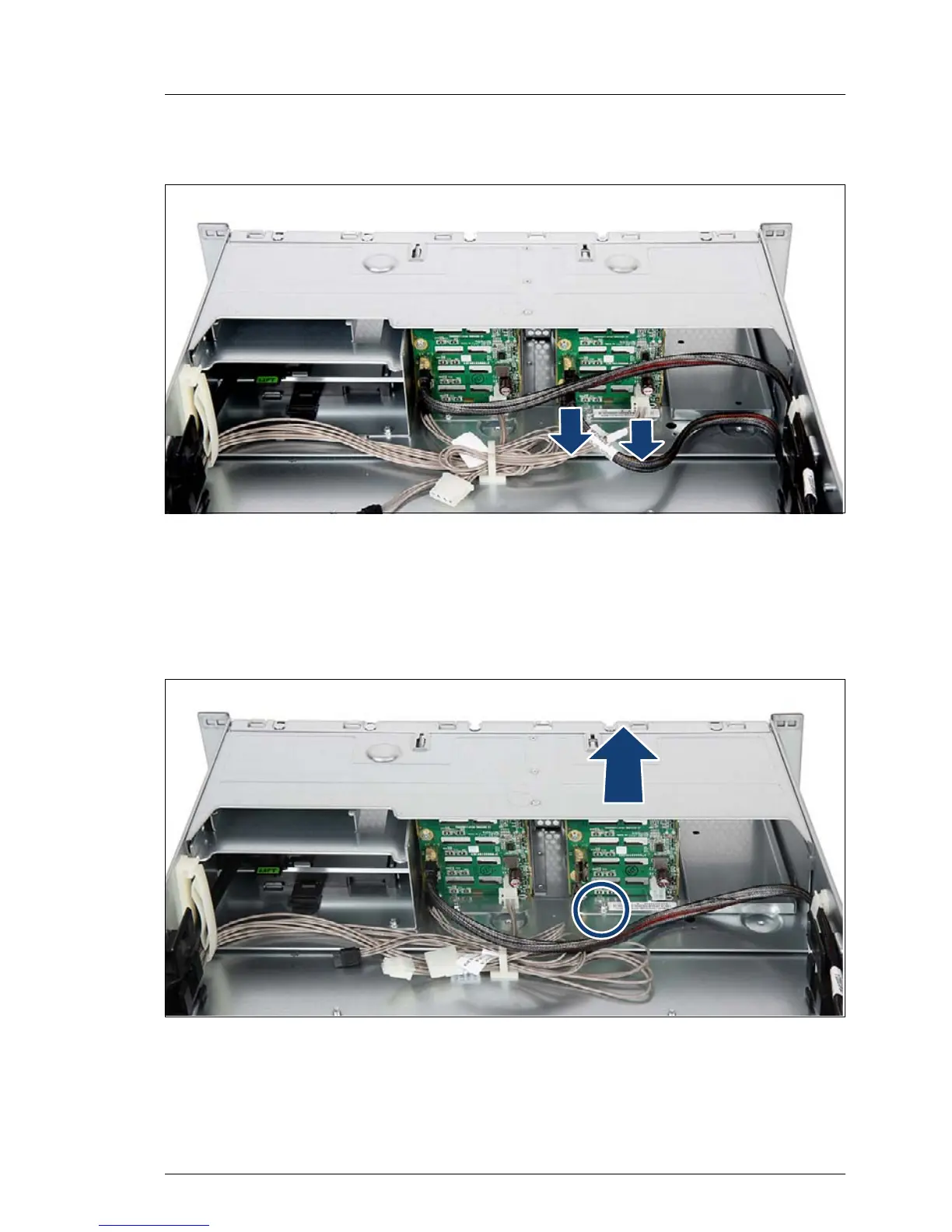

Figure 54: Disconnecting cables from the 4x 2.5-inch HDD SAS backplane
Ê Disconnect all cables from the 4x 2.5-inch HDD SAS backplane:
– SAS / SATA cable
– Power cable
Figure 55: Removing the HDD cage
Ê Remove the screws of the HDD cage.
Ê Slide the HDD cage frontward out.
