RX300 S8
Upgrade and Maintenance Manual 219
Expansion cards and backup units
9.6.4.3 Removing the BBU from the BBU holder

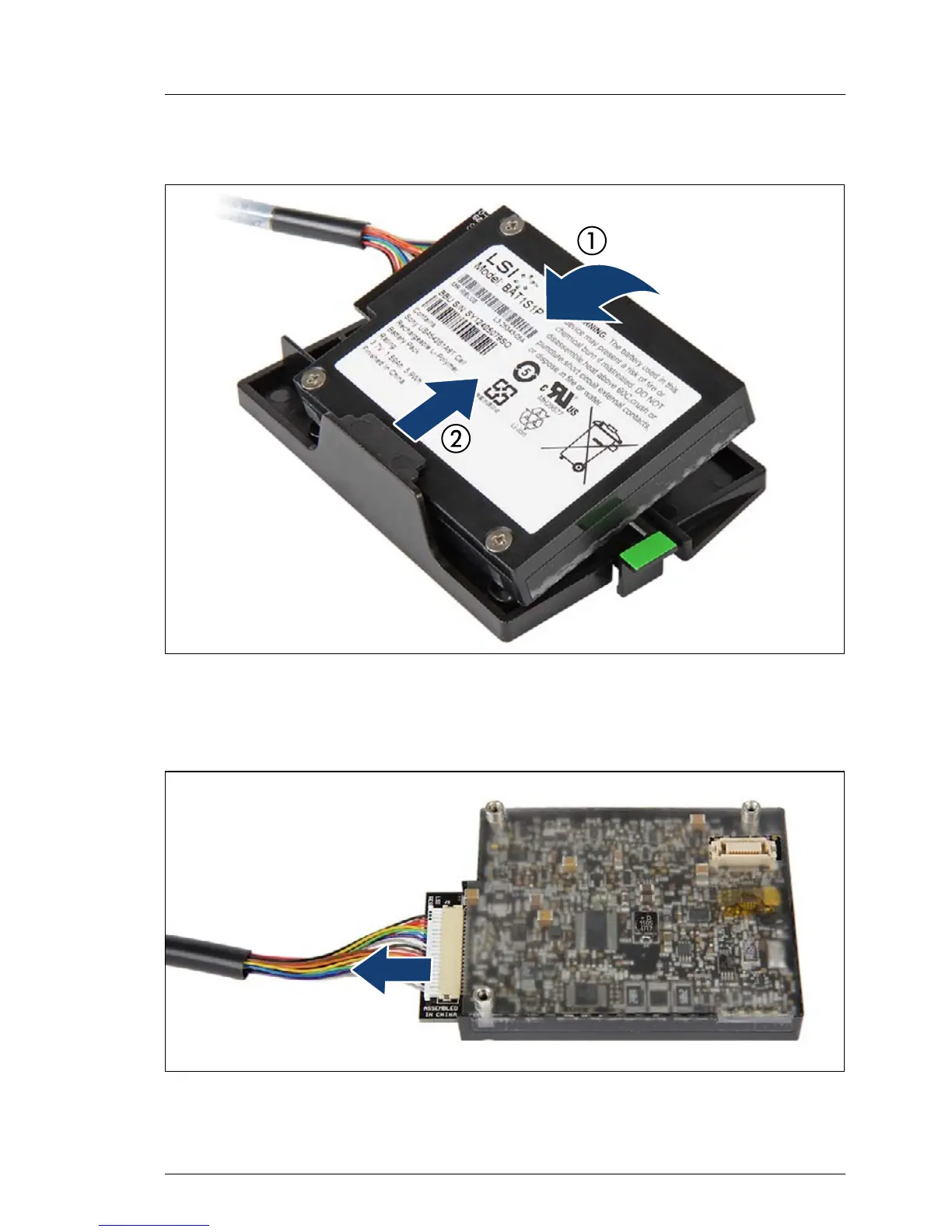

Figure 108: Removing the BBU from the BBU holder
Ê Press out on the right retaining bracket on the BBU holder (1) to disengage
the locking mechanism while pulling up the BBU (2).
Figure 109: Disconnecting the BBU cable from the BBU
Ê Carefully disconnect the BBU cable from the BBU.
