446 Upgrade and Maintenance Manual
RX300 S8
Conversion configurations
– Insert the screw from the concerning HDD cage or the two screws from
the front panel cage (see circles).
– Connect the cables to the HDD backplane or the front panel module.
Depending on the start configuration and the end configuration you must
exchange the cables of the SAS cabling. See in the following sections
and the sction "Cabling plans" on page 468
15.2.5 Installing the front cover
15.2.5.1 Multicage in bay 4/5

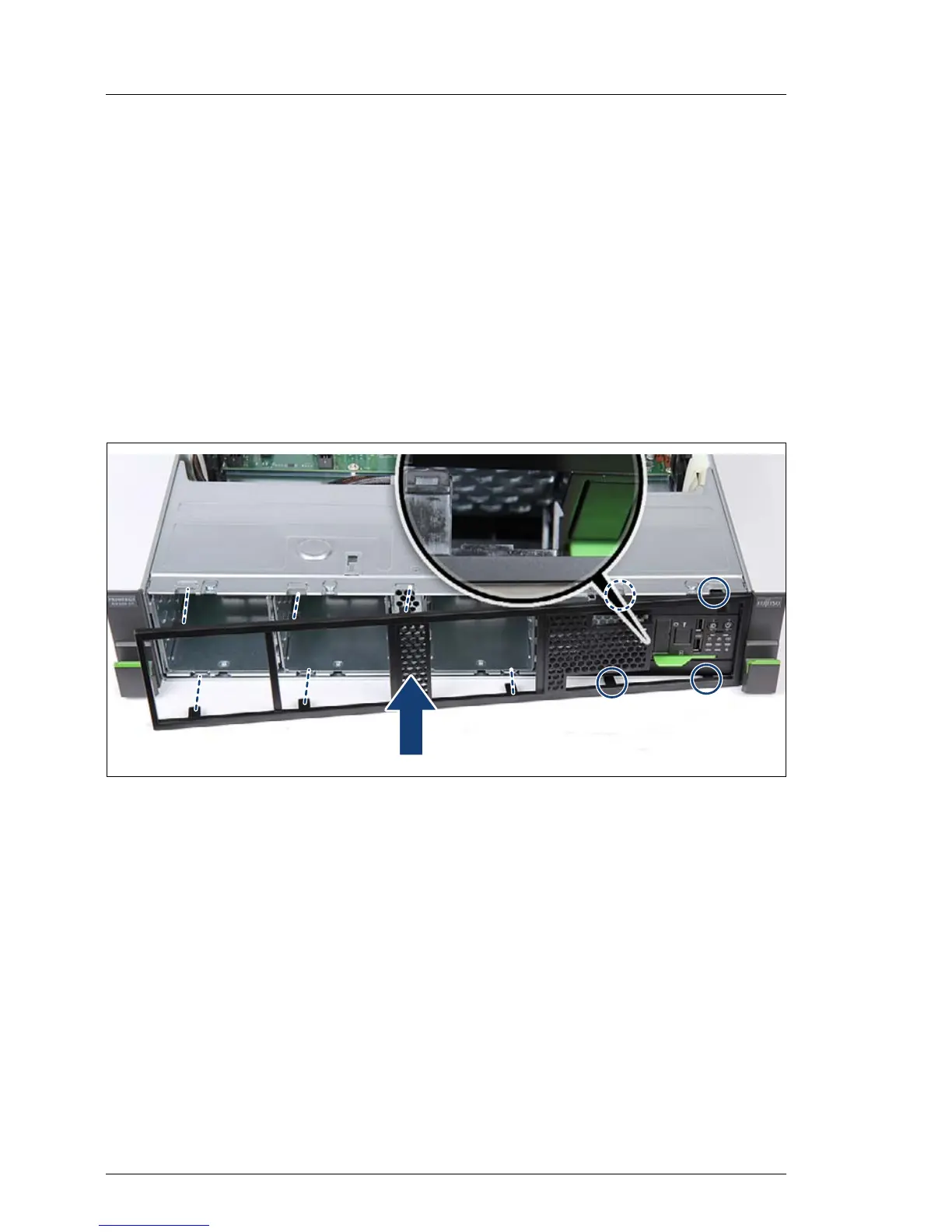

Figure 296: Installing the front cover for configurations with the multicage
Ê Insert the front cover starting with the right side. Regard the noses see
close-up.
I Regard that all tabs will be engaged in the recesses.
