RX300 S8
Upgrade and Maintenance Manual 407
System board and components
14.3.2.1 Preliminary steps
Ê "Disabling BitLocker functionality" on page 73
Ê "Locating the defective server" on page 51
Ê "Shutting down the server" on page 54
Ê "Disconnecting power cords" on page 54
Ê "Getting access to the component" on page 57
14.3.2.2 Removing the UFM

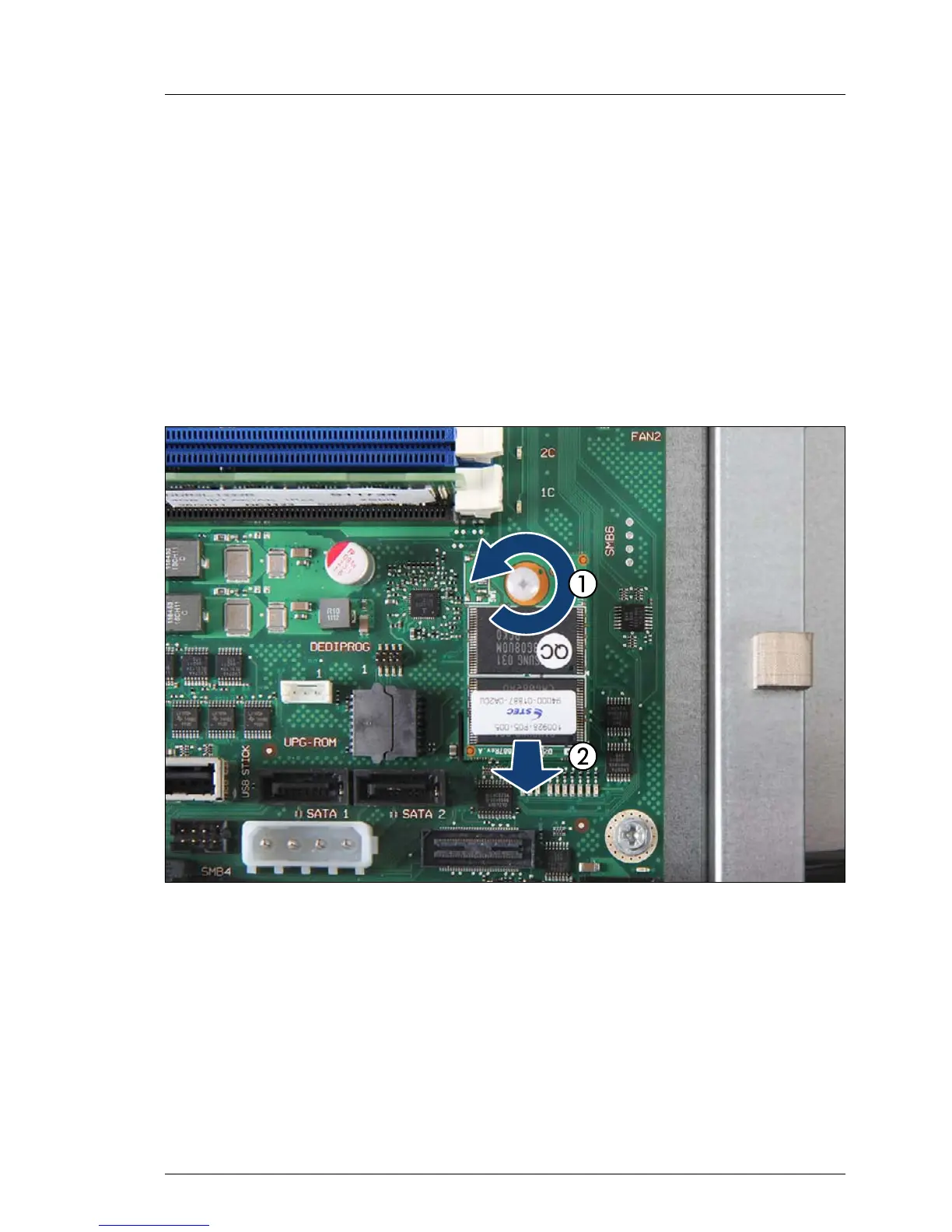

Figure 268: Removing the UFM (A)
Ê Remove the nylon screw on the defective UFM (1).
Ê Disconnect and remove the defective UFM (2).
