RX300 S8
Upgrade and Maintenance Manual 217
Expansion cards and backup units
9.6.3.3 Removing the BBU holder from the air duct

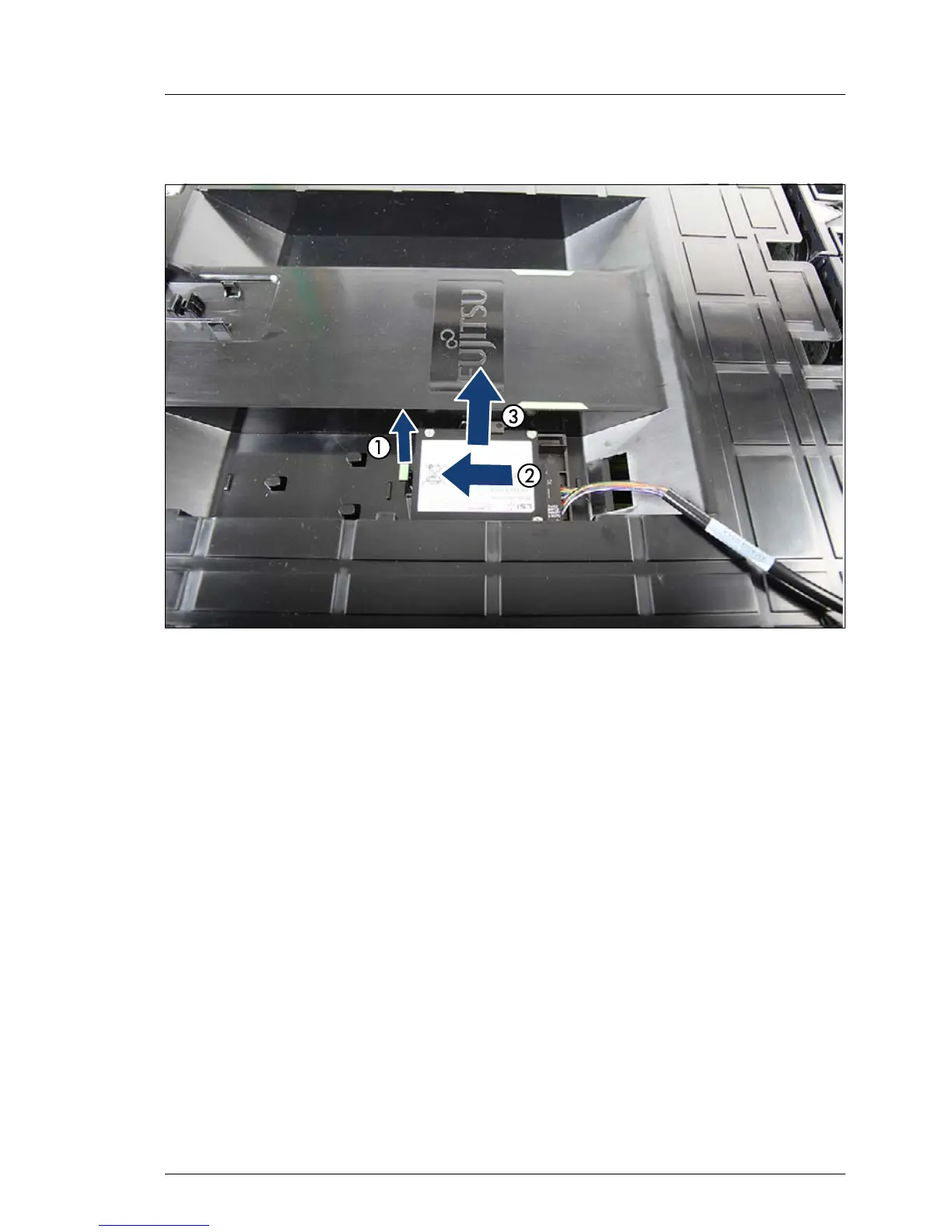

Figure 107: Removing the BBU holder from the air duct (A)
Ê Lift up the green locking handle on the BBU holder (1) while sliding the BBU
holder in the direction of the arrow as far as it will go (2).
I After that, the fixation bolts on the air duct will rest in the wide ends of
the keyhole slots on the holder.
Ê Lift the BBU holder from the air duct (3).
9.6.3.4 Concluding steps
Ê "Reassembling" on page 63
Ê "Connecting the server to the power source" on page 69
Ê "Switching on the server" on page 71
Ê If applicable, "Updating RAID controller firmware" on page 84.
Ê "Enabling SVOM boot watchdog functionality" on page 89
