118 Upgrade and Maintenance Manual
RX300 S8
Power supply units
6.6.4 Installing the power backplane

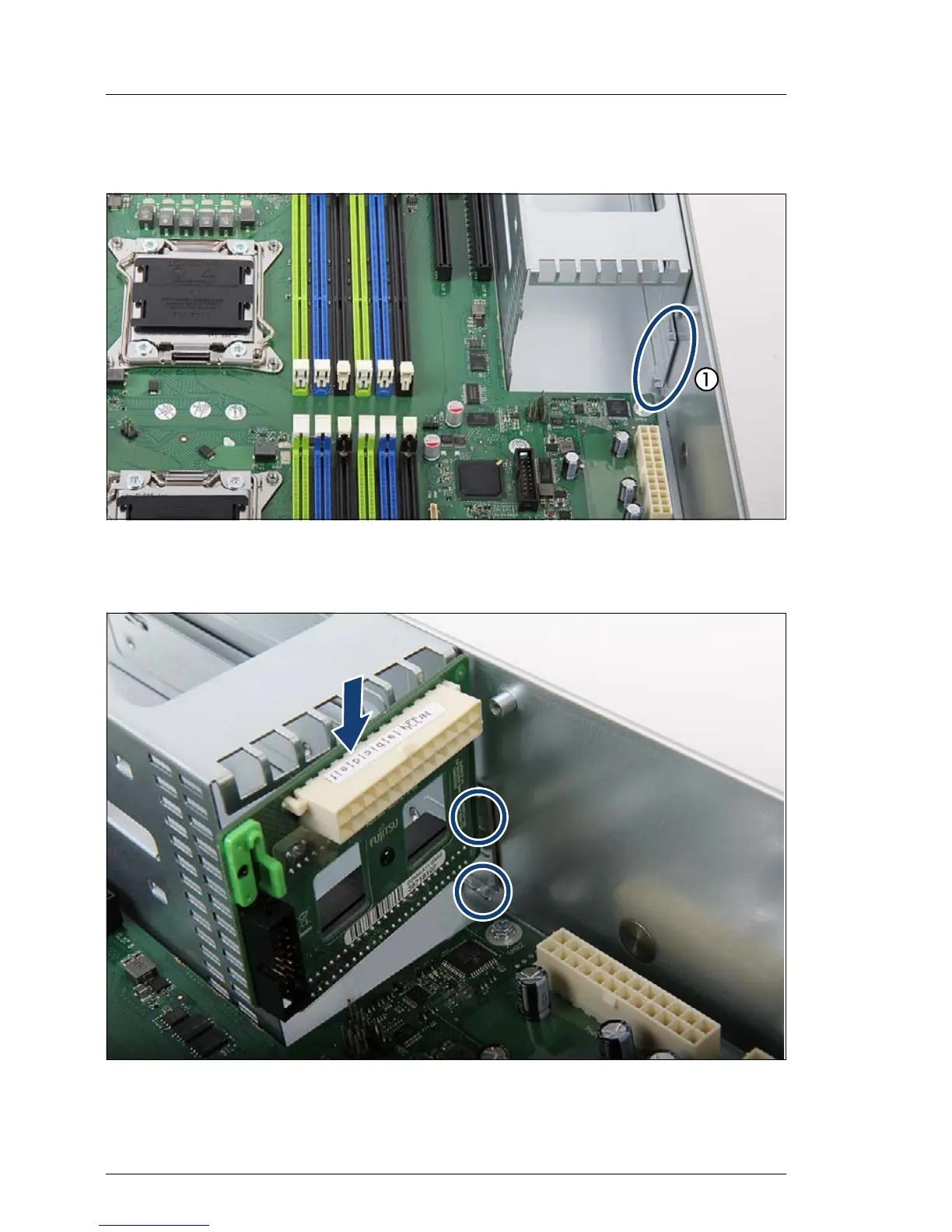

Figure 27: Installing the power backplane (A)
Ê Insert the new power backplane into the guiding hooks of the chassis (1).
Figure 28: Installing the power backplane (B)
Ê Slide the power backplane downward in the guiding hooks.
