RX300 S8
Upgrade and Maintenance Manual 321
Accessible drives
12.8.4 Connecting the tape/RDX drive
12.8.4.1 Connecting the tape/RDX drive to the systemboard

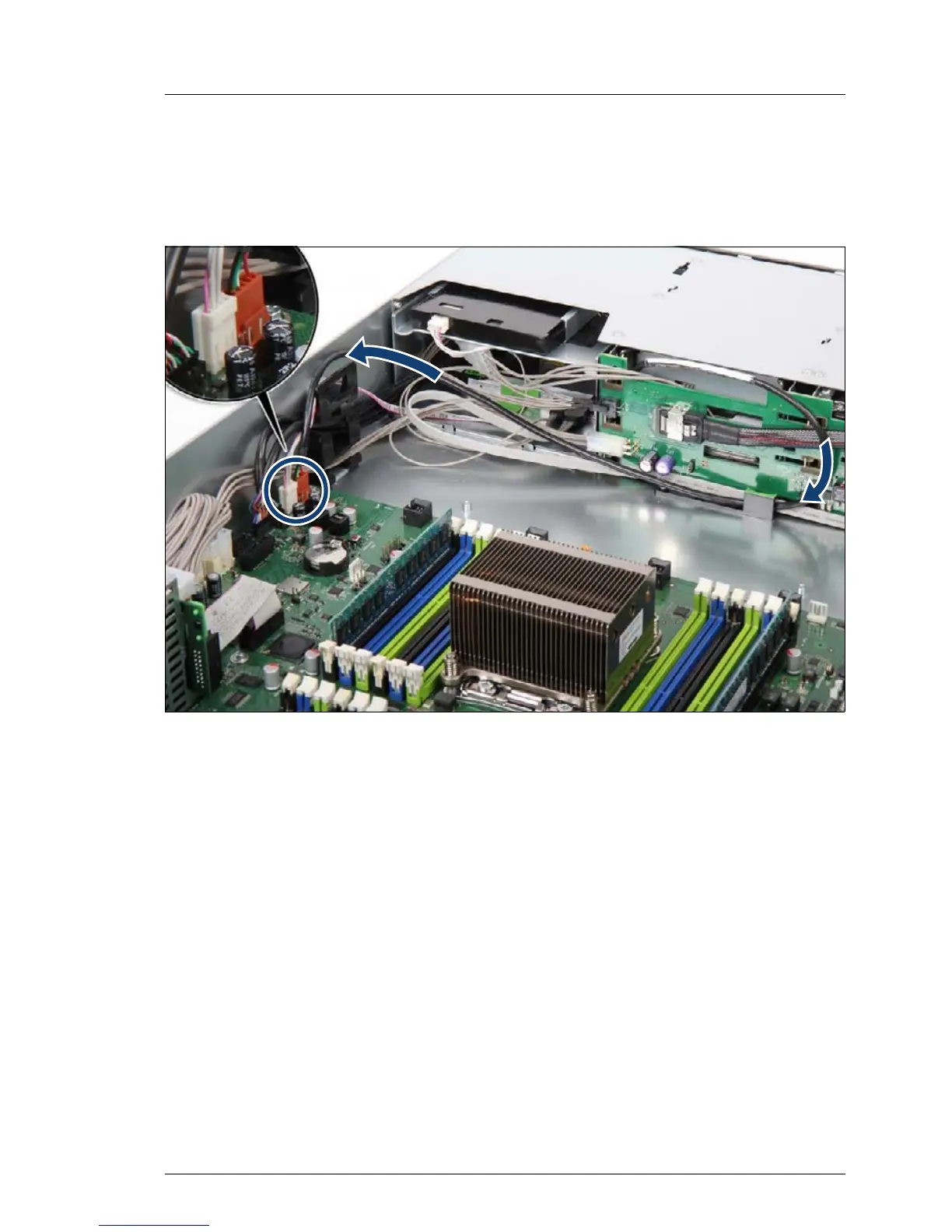

Figure 191: Installing the tape/RDX drive
Ê Connect the USB cable C17 to the connector USB INT1 on the system
board.
Ê Route the cables as shown.
12.8.4.2 Connecting the RDX drive to the USB 3.0 interface card
Ê Install the USB 3.0 interface card, see section "Installing a slot bracket to the
USB 3.0 interface card D3305" on page 180 and section "Installing an
expansion card" on page 183.
