194 Upgrade and Maintenance Manual
RX300 S8
Expansion cards and backup units
9.4.2.2 Removing the SAS RAID controller

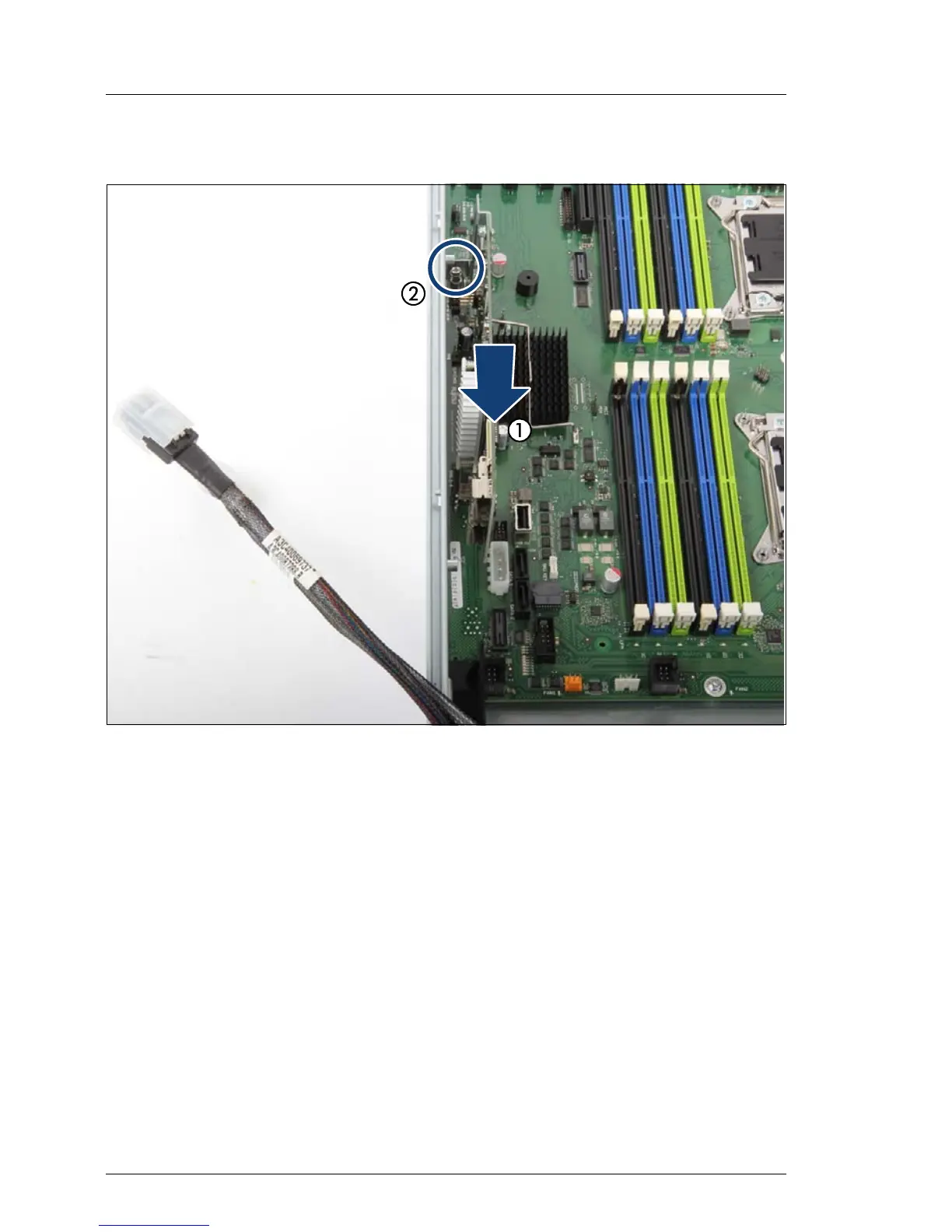

Figure 92: Removing the SAS RAID controller
Ê Loosen the screw on the RAID card holder (2).
Ê Carefully pull up on the SAS RAID controller in a vertical motion and remove
it from its slot (1).
9.4.2.3 Concluding steps
Ê "Reassembling" on page 63
Ê "Connecting the server to the power source" on page 69
Ê "Switching on the server" on page 71
Ê In order to configure an expansion card that has been installed or replaced,
the card’s Option ROM has to be enabled in the system board BIOS. If
applicable, proceed as described in section "Enabling Option ROM scan" on
page 85.
