60 Upgrade and Maintenance Manual
RX300 S8
Basic hardware procedures
When using a lifter, this removal procedure needs to be carried out by
maintenance personnel.

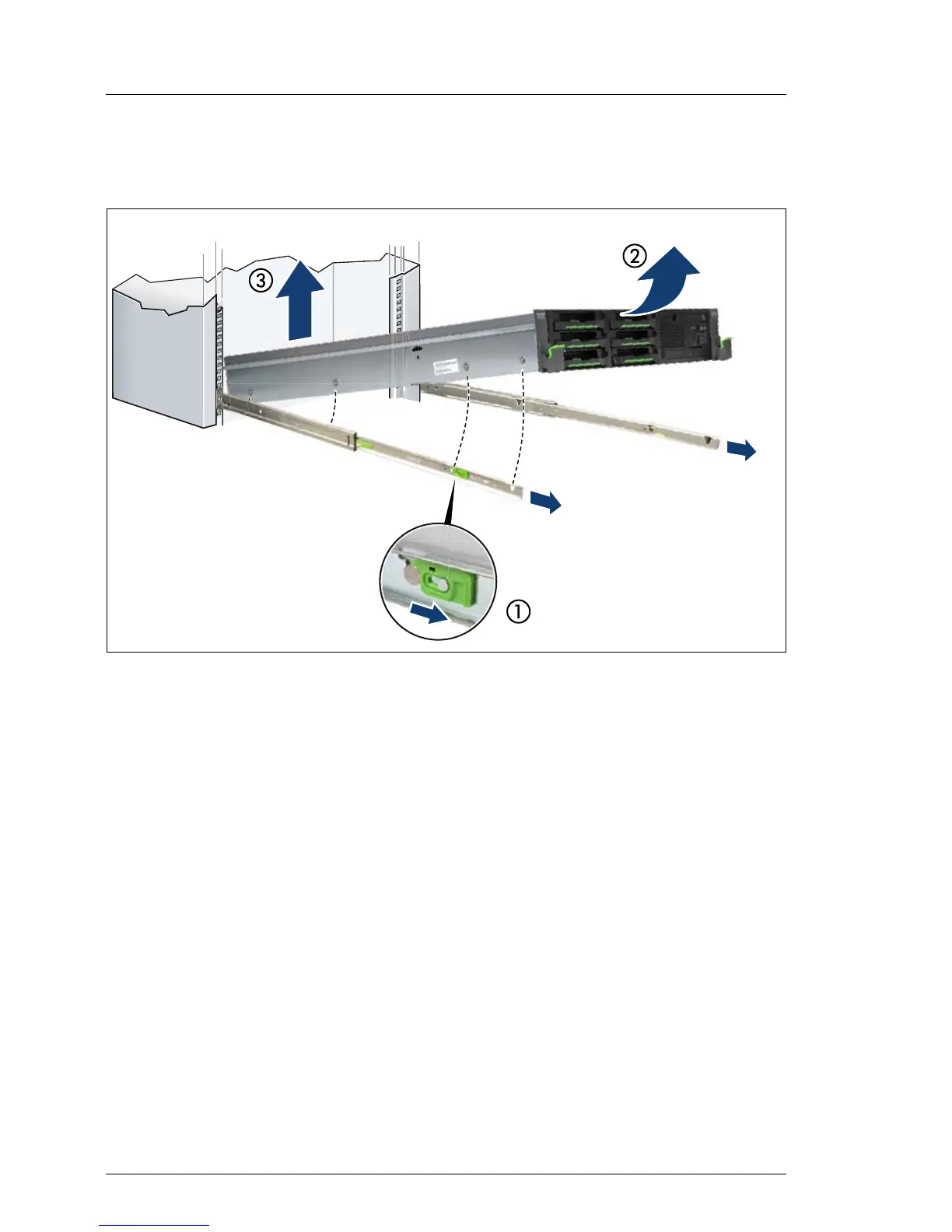

Figure 5: Removing the server from the rack
Ê Release the locking bars on both rails (1).
Ê Lift up the front of the server as shown so that the front and middle rack
mounting bolts are disengaged from the mounting points on the telescopic
rails.
Ê Lift the server out of the rear mounting points (3) and place it on an even
surface.
4.4.3 Opening the server
V CAUTION!
●
Before removing or installing covers, turn off the server and all
peripheral devices. Also unplug all power cables from the outlet.
Failure to do so can cause electric shock.
