RX300 S8
Upgrade and Maintenance Manual 197
Expansion cards and backup units
9.5 Modular LAN controller in PCI slot 1
9.5.1 Basic information
I PCI slot 1 is the preferred slot for Modular LAN controllers.
If you want to use the Modular Sevice LAN function with the Modular LAN
contoller D2755 connect the controller with the NCSI sideband cable to
the system board.

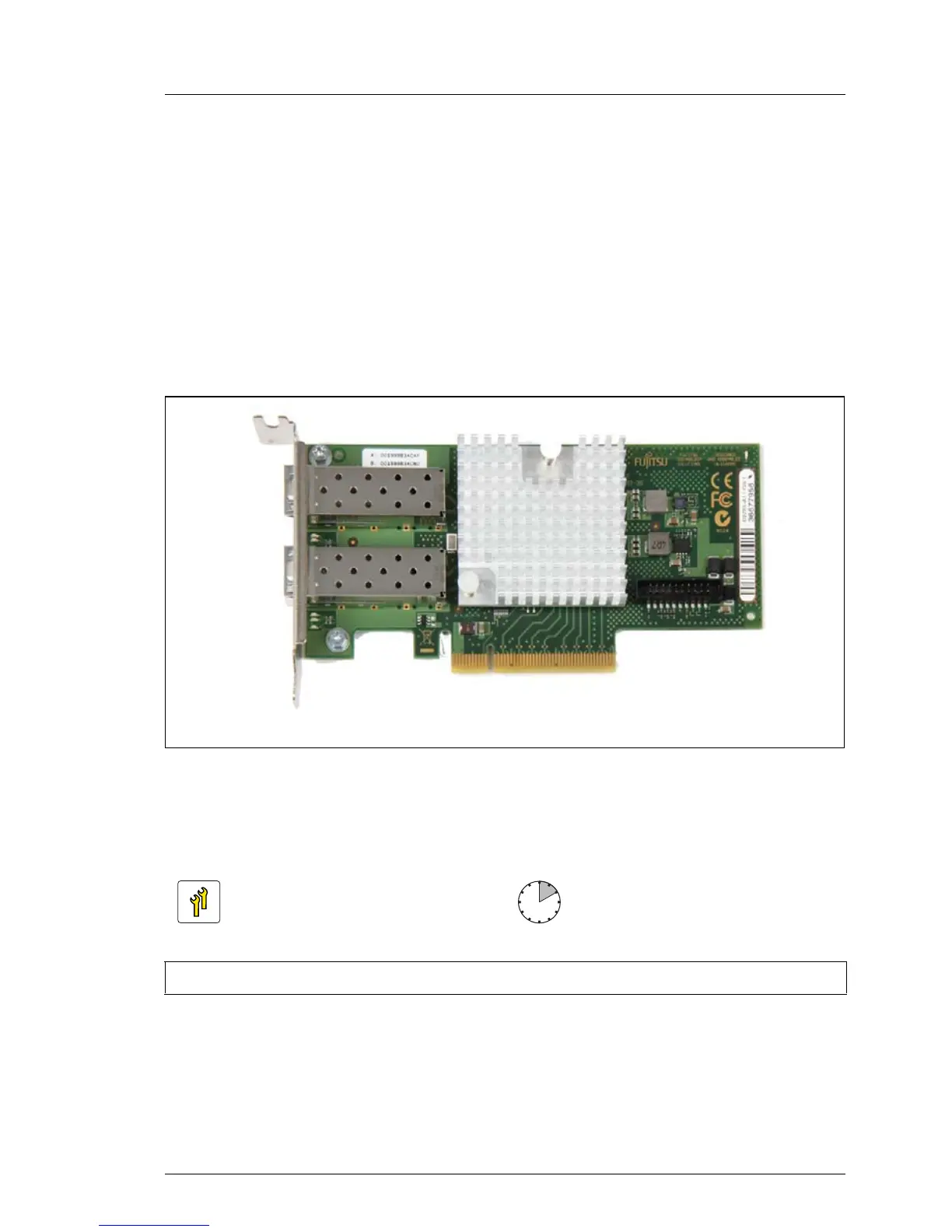

Figure 93: Modular LAN controller D2755
9.5.2 Installing the Modular LAN controller
9.5.2.1 Preliminary steps
Ê "Disabling BitLocker functionality" on page 73
Ê "Disabling SVOM boot watchdog functionality" on page 74
Upgrade and Repair Unit
(URU)
Hardware: 5 minutes
Software: 5 minutes
Tools: Phillips PH2 / (+) No. 2 screw driver
