Hard disk drives / solid state drives

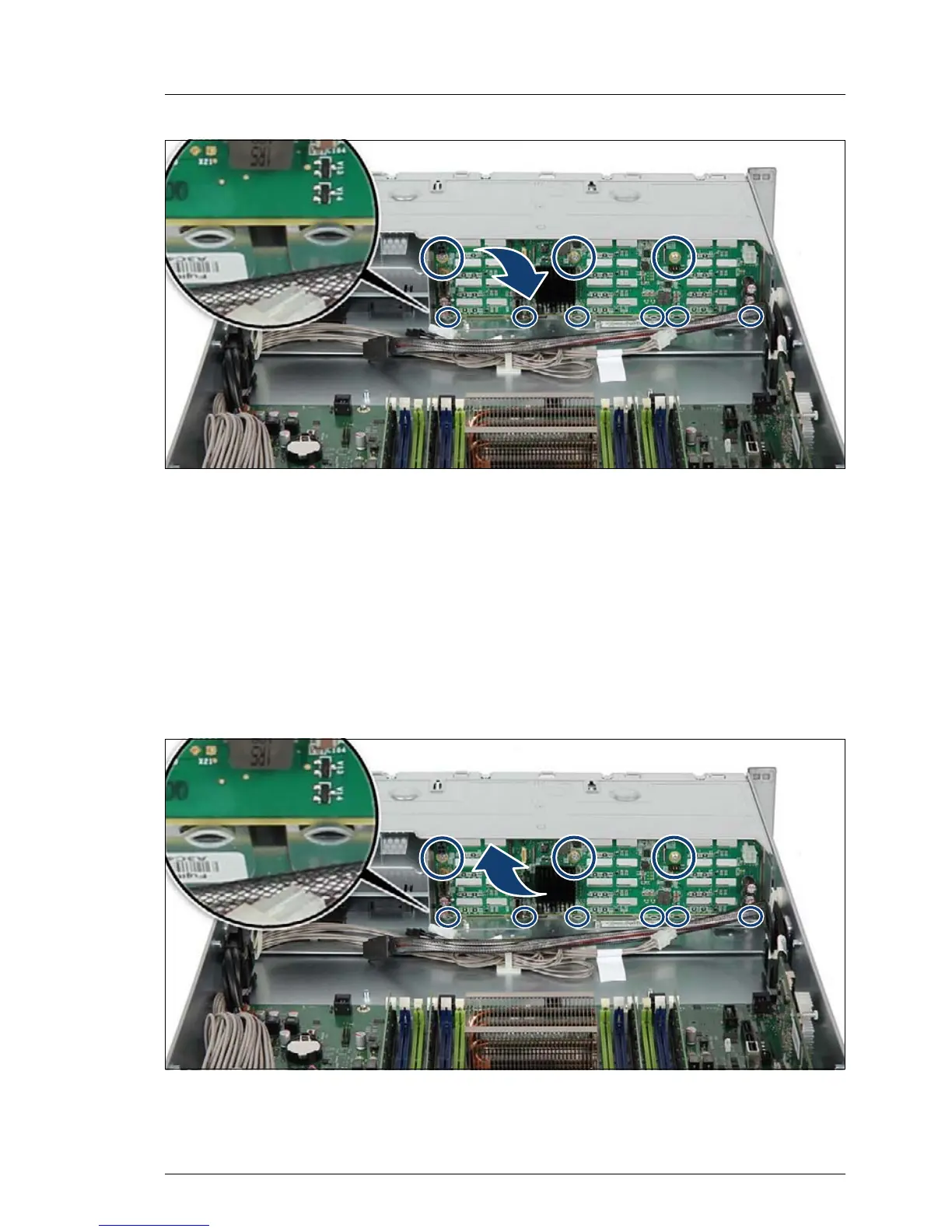

Figure 61: Removing the 2.5-inch HDD SAS backplane (A)
Ê Remove the three screws of the 12x 2.5-inch HDD SAS backplane (see
circles).
Ê Tilt out the 12x 2.5-inch HDD SAS backplane as shown.
Ê At a slight angle, unhinge the 12x 2.5-inch HDD SAS backplane from the
guides on the drive cage and remove it.
7.4.3.3 Installing the 12x 2.5-inch HDD SAS backplane
Figure 62: Installing the 12x 2.5-inch HDD SAS backplane (A)
