156 Upgrade and Maintenance Manual
RX300 S8
Hard disk drives / solid state drives
Ê At a slight angle, fit the 12x 2.5-inch HDD SAS backplane into the guides on
the bottom of the chassis.
Ê Fold in the 12x 2.5-inch HDD SAS backplane.
Ê Secure the 12x 2.5-inch HDD SAS backplane with the three screws .

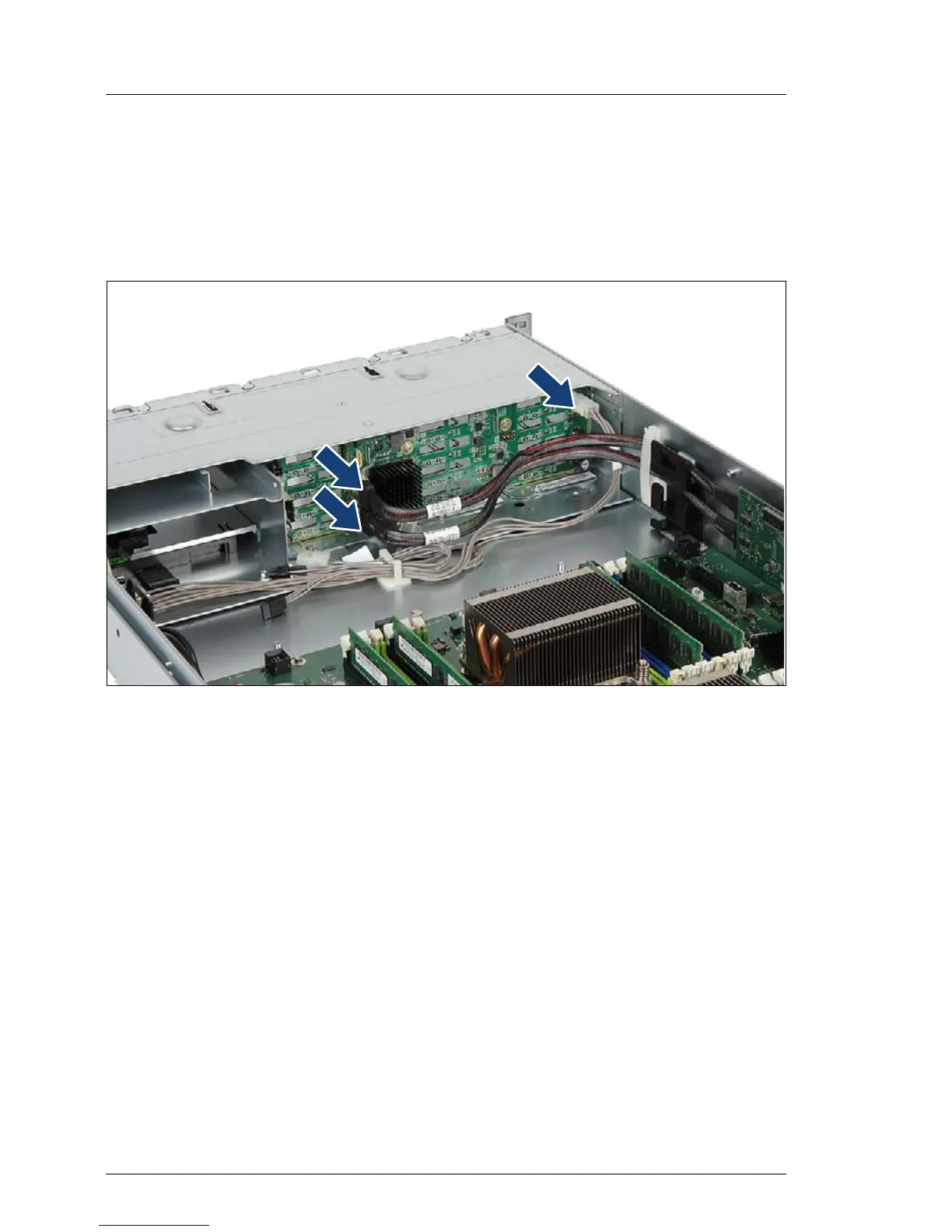

Figure 63: connecting cables tothe 12x 2.5-inch HDD SAS backplane
Ê Reconnect all cables to the 12x 2.5-inch HDD SAS backplane:
– Power cable (C4) connected to SAS backplane connector X15
– Power cable (C5) connected to SAS backplane connector X17
– SAS cable (C9) connected to SAS controller connector MLC1 to primary
backplane connectors X1
– SAS cable (C9) connected to SAS controller connector MLC2 to
secondary backplane connectors X2
I For a complete cabling overview, please refer to section "List of used
cables" on page 465.
