Fujitsu PRIMERGY RX300 S8 Upgrade And Maintenance Manual

146 Upgrade and Maintenance Manual RX300 S8
Hard disk drives / solid state drives
7.4.1.3 Installing the 3.5-inch HDD SAS / SATA backplane

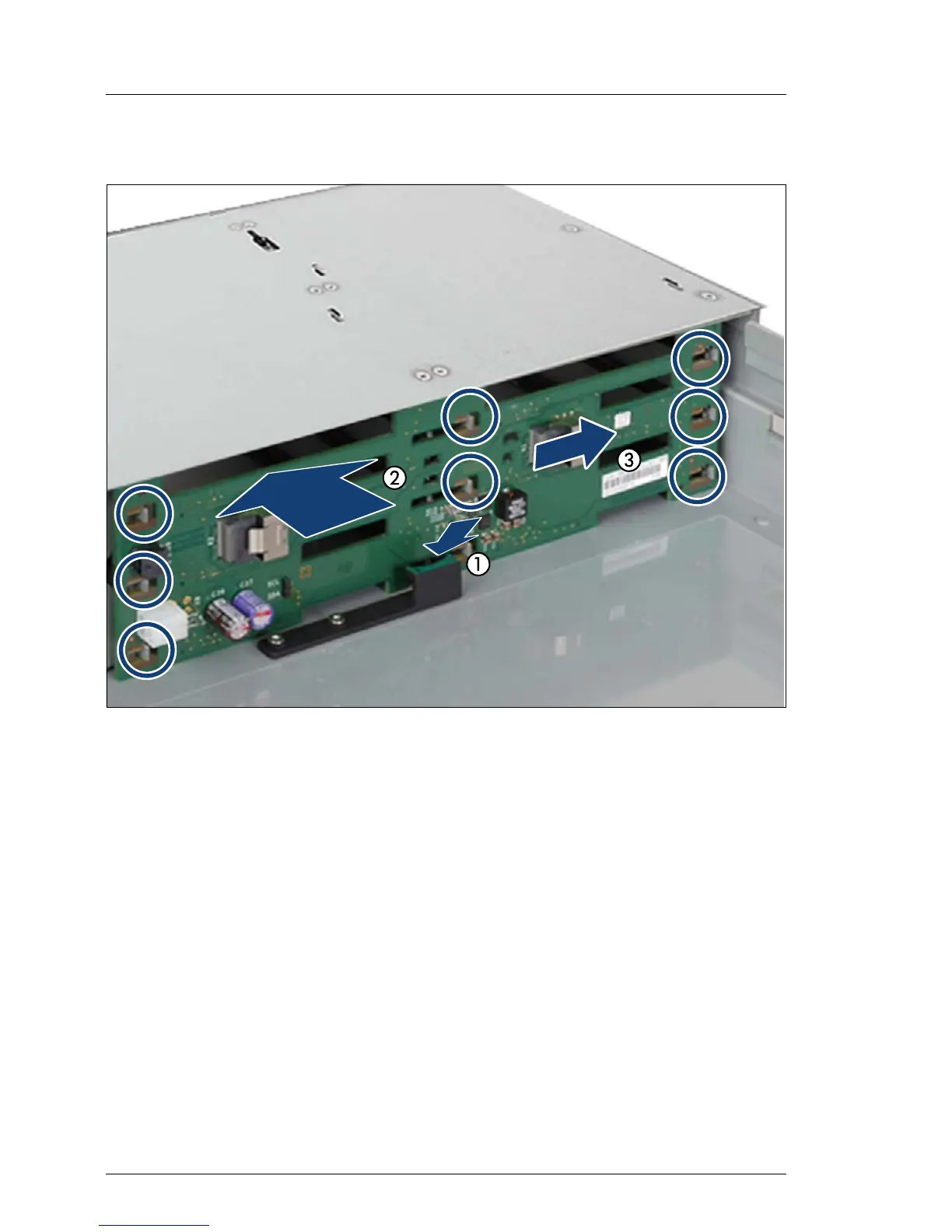

Figure 52: Installing the 3.5-inch HDD SAS / SATA backplane (A)
Ê At a slight angle insert the 3.5-inch HDD SAS / SATA backplane into the
guide (1).
Ê Fit the 3.5-inch HDD SAS / SATA backplane on the eight hooks (circles) (2).
Ê Push the3.5-inch HDD SAS / SATA backplane in the direction of the
arrow (3).
I Ensure that the eight hooks project through the recesses in the
backplane.

Fujitsu PRIMERGY RX300 S8 Specifications

General

Memory	Up to 768 GB DDR3
Form Factor	2U rack server
Remote Management	iRMC S4 (Integrated Remote Management Controller)
Chipset	Intel C602
Processor	Intel Xeon E5-2600 v2 product family
Storage	Up to 16 x 2.5" or 8 x 3.5" drives
RAID	RAID 0, 1, 5, 6, 10, 50, 60
Network	4 x Gigabit Ethernet ports
Expansion Slots	6 x PCIe 3.0 slots
Operating System Support	Windows Server, Red Hat, SUSE, VMware
Memory Type	DDR3 RDIMM/LRDIMM
Power Supply	Hot-plug redundant power supply units
