RX300 S8
Upgrade and Maintenance Manual 147
Hard disk drives / solid state drives

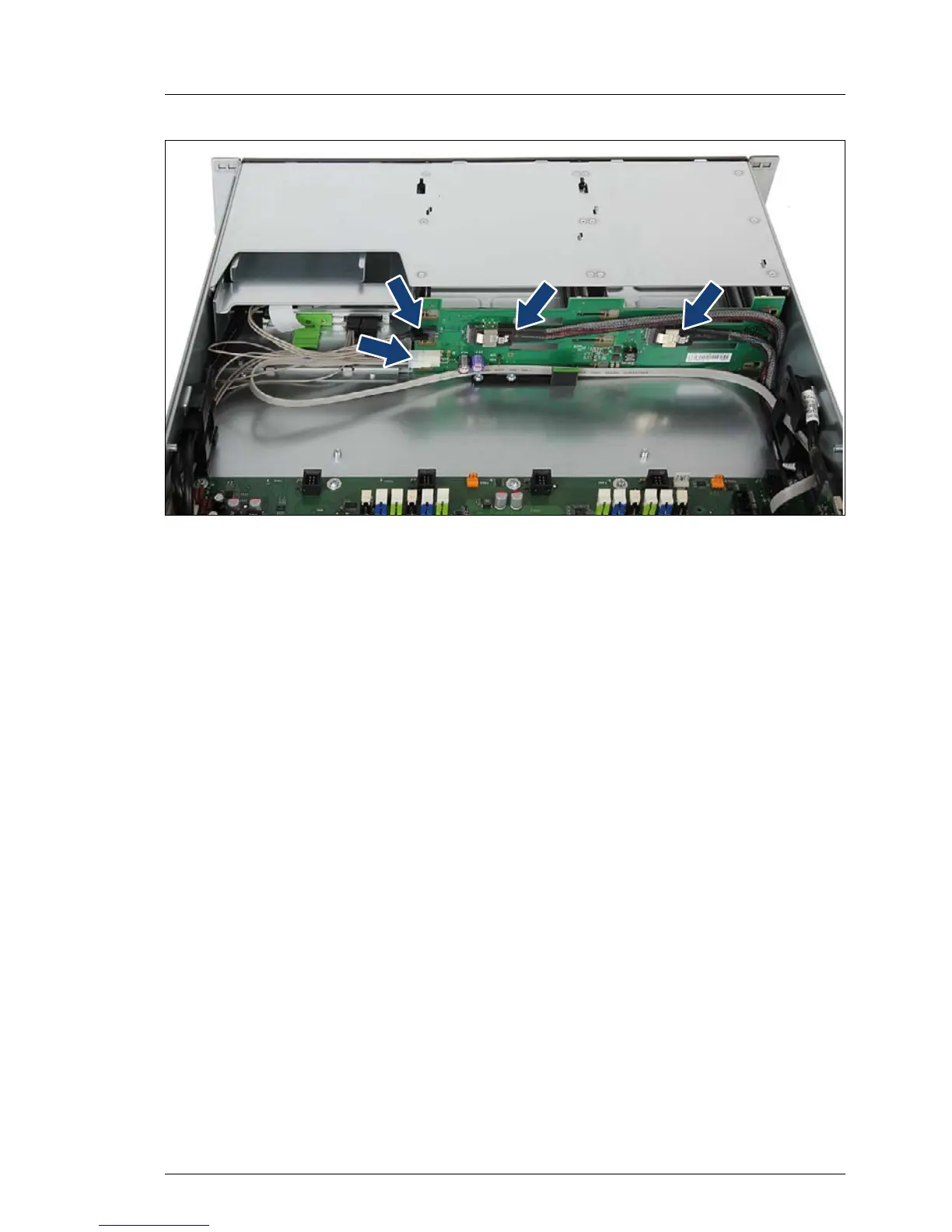

Figure 53: Installing the 3.5-inch HDD SAS / SATA backplane (B)
Ê Reconnect all cables to the 3.5-inch HDD SAS / SATA backplane:
– Power cable (C5) to connector X10
– Power cable (C3) to connector X9
– SAS cable (C8) to connector X1
– SAS cable (C9) to connector X2
I For a complete cabling overview, please refer to section "List of used
cables" on page 465.
