RX300 S8
Upgrade and Maintenance Manual 233
Expansion cards and backup units
9.6.7.4 Removing the FBU from the holder

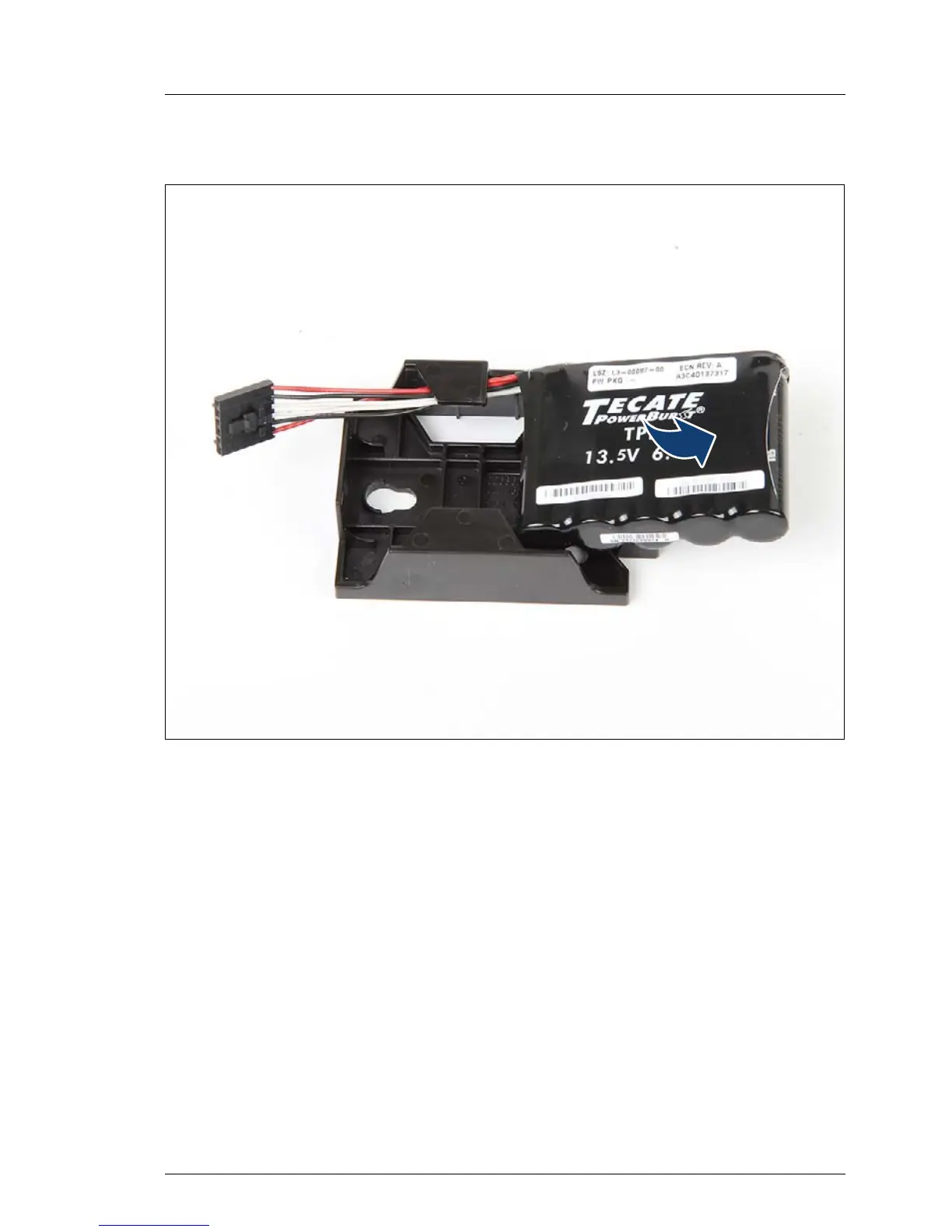

Figure 121: Removing the FBU from the holder
Ê Pull the FBU at a slight angle out of the holder.
9.6.7.5 Installing a new FBU
Ê "Connecting the FBU cable to the FBU" on page 225
Ê "Preparing the FBU" on page 223
Ê "Installing the FBU holder onto the air duct" on page 225
9.6.7.6 Concluding steps
Ê "Reassembling" on page 63
Ê "Connecting the server to the power source" on page 69
