RX300 S8
Upgrade and Maintenance Manual 365
Front panel and external connectors

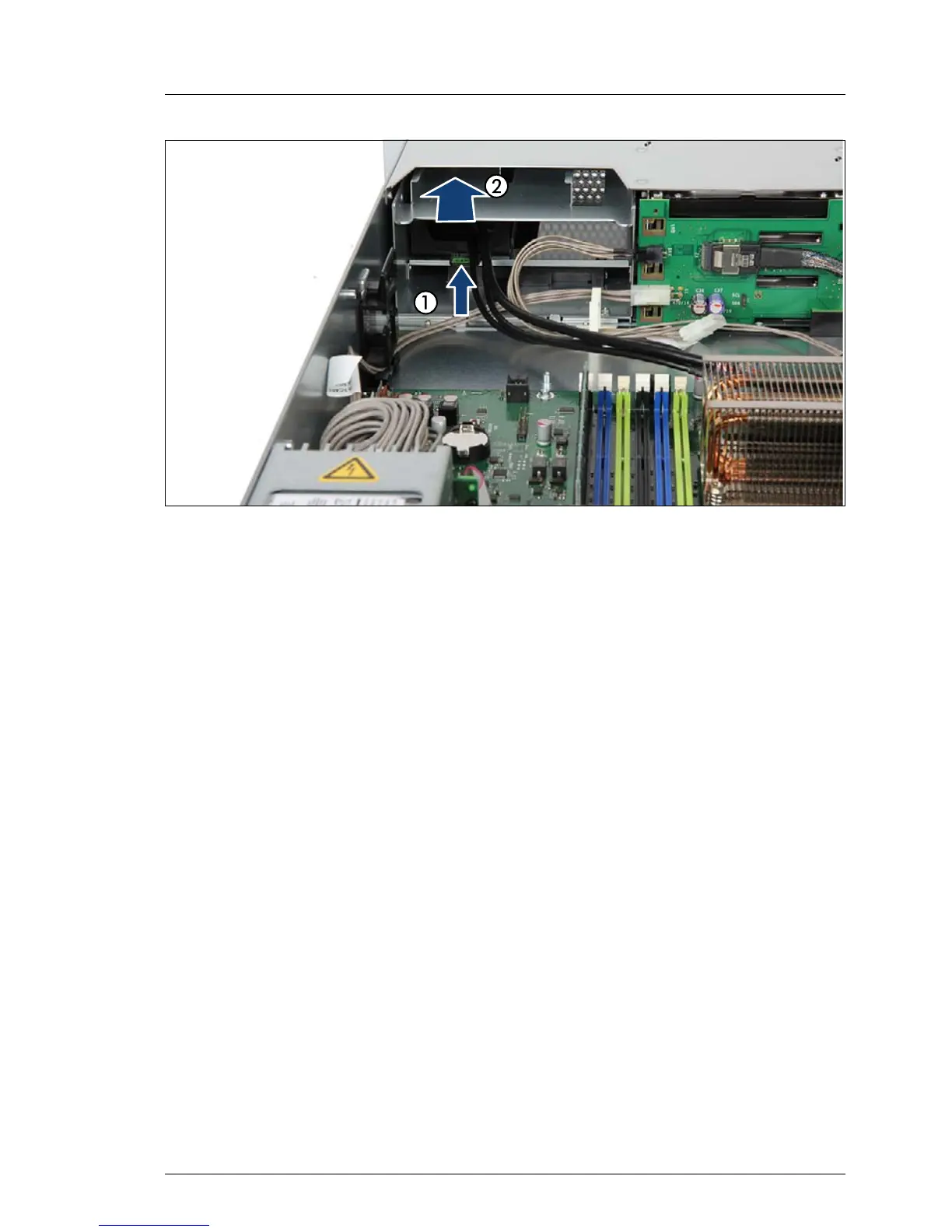

Figure 231: Removing the front panel module
Ê Push the locking latches upward (1) to disengage the locking mechanism.
Ê Carefully pull the front panel module out of its bay (2).
V CAUTION!
Ensure that none of the cables are strained or damaged!
Ê If the front VGA connector has been installed in the defective front panel
module, remove the cable as described in section "Removing the front VGA
connector" on page 374.
Ê If the front LAN connector has been installed in the defective front panel
module, remove the cable as described in section "Removing the front VGA
connector" on page 374.
13.1.1.3 Installing the front panel module
Ê If the front VGA connection is to be installed in the new front panel module,
install the front VGA cable as described in section "Installing the front VGA
connector" on page 369.
Ê If the front LAN connection is to be installed in the new front panel module,
install the front LAN cable as described in section "Installing the front LAN
connector" on page 376.
