216 Upgrade and Maintenance Manual
RX300 S8
Expansion cards and backup units
9.6.3.2 Removing the air duct with a BBU

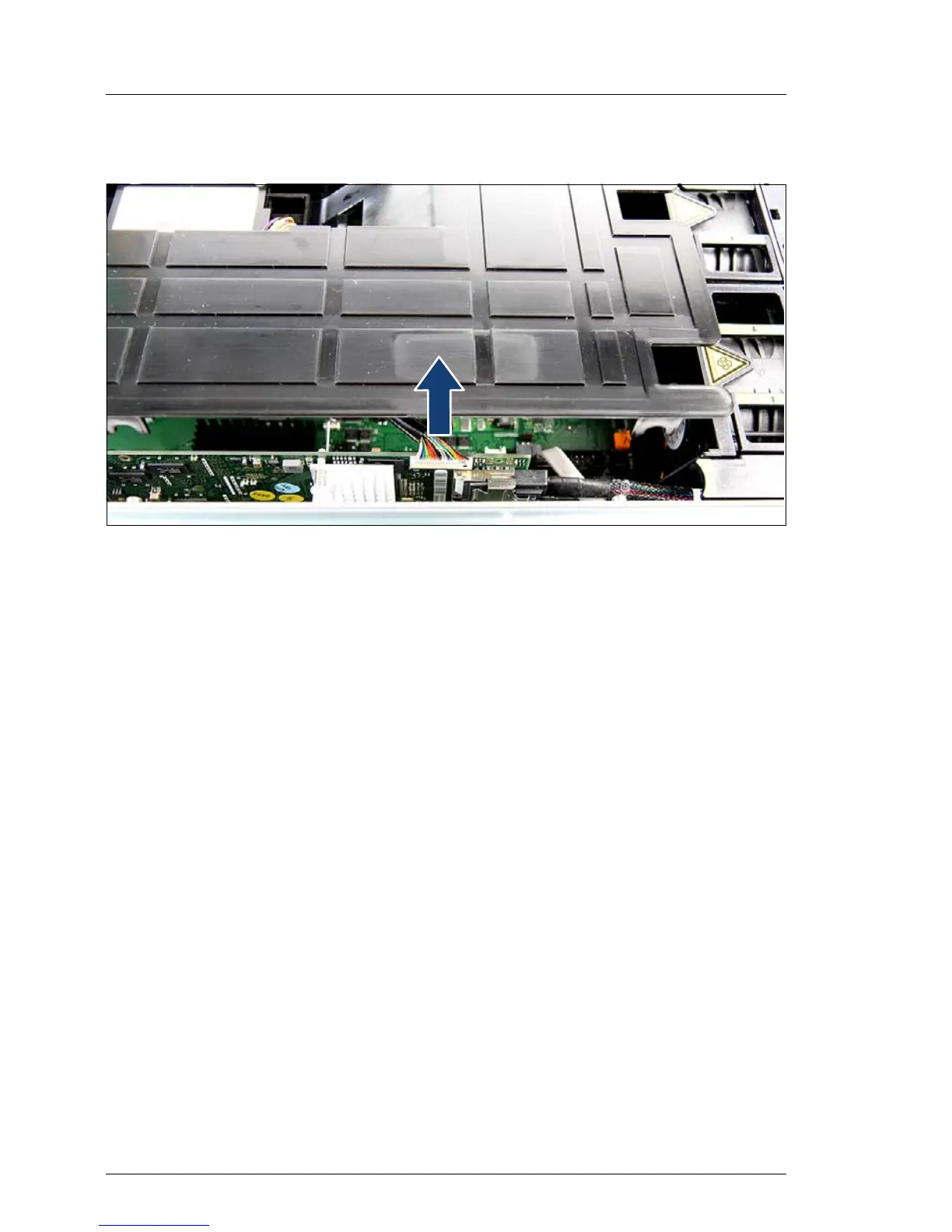

Figure 106: Disconnecting the BBU cable
Ê Tilt up the air duct a little.
Ê Carefully disconnect the BBU cable from the RAID controller (see arrow).
Ê Pull the BBU cable through the gap in the air duct.
