RX300 S8
Upgrade and Maintenance Manual 373
Front panel and external connectors
13.2.2 Removing the front VGA connector
13.2.2.1 Preliminary steps
Ê "Disabling BitLocker functionality" on page 73
Ê "Locating the defective server" on page 51
Ê "Shutting down the server" on page 54
Ê "Disconnecting power cords" on page 54
Ê "Getting access to the component" on page 57
Ê "Removing the fan box" on page 162
13.2.2.2 Removing the front VGA cable

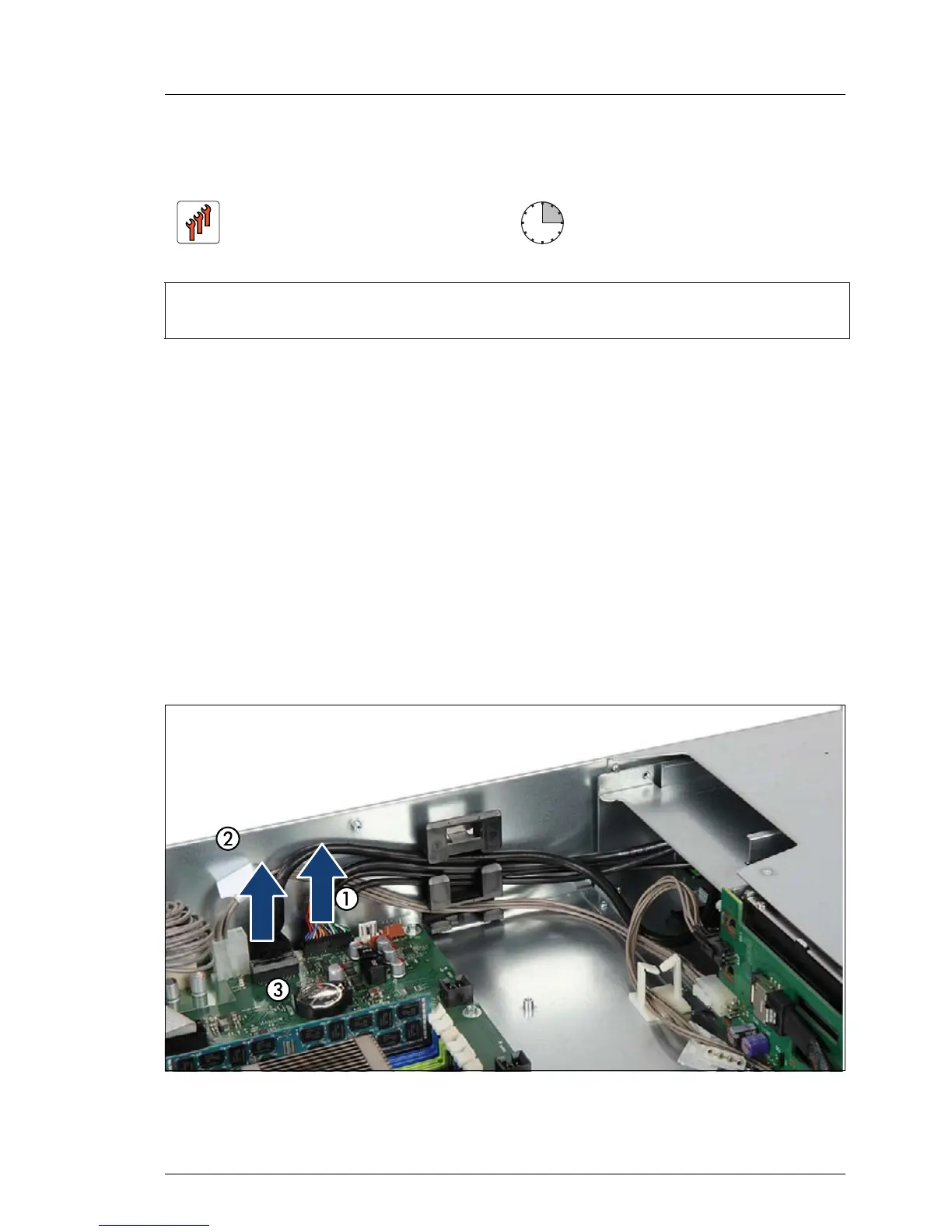

Figure 239: Disconnecting the front VGA cable
Ê Remove the front panel cable from the system board (1).
Field Replaceable Unit
(FRU)
Hardware: 10 minutes
Tools: Socket screw driver (5 mm)
Wrench key for UNC #4-40 hexagon bolts
