Fujitsu PRIMERGY RX300 S8 Upgrade And Maintenance Manual

154 Upgrade and Maintenance Manual RX300 S8
Hard disk drives / solid state drives
V CAUTION!
Ensure that all hard disk drives are uniquely identified so that you can
reinsert them into their original bays after replacing the HDD
backplane.
Ê "Getting access to the component" on page 57
Ê "Removing the fan box" on page 162
7.4.3.2 Removing the 12x2.5-inch HDD SAS backplane

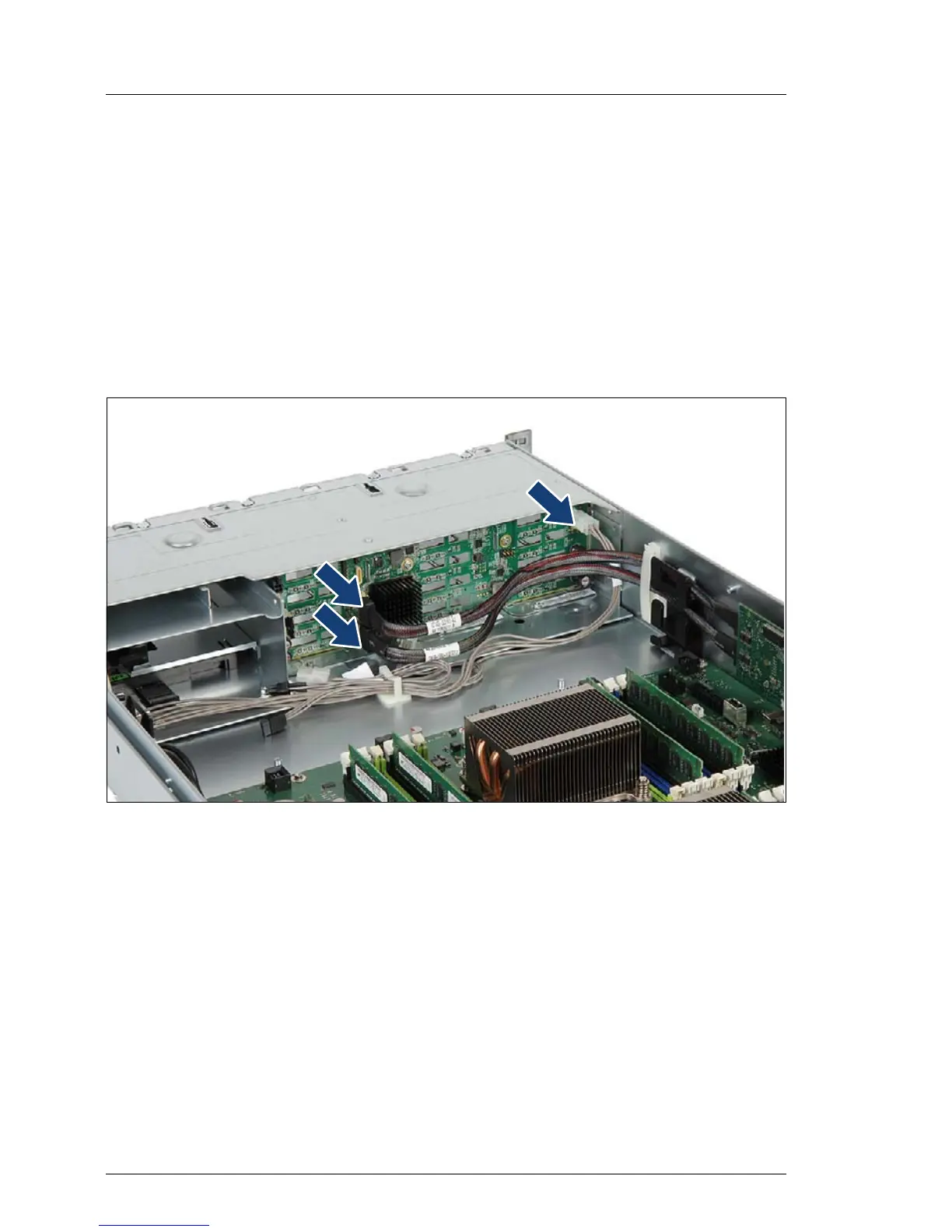

Figure 60: Disconnecting cables from the 12x 2.5-inch HDD SAS backplane
Ê Disconnect all cables from the 12x 2.5-inch HDD SAS backplane:
– SAS cables
– Power cables

Fujitsu PRIMERGY RX300 S8 Specifications

General

Memory	Up to 768 GB DDR3
Form Factor	2U rack server
Remote Management	iRMC S4 (Integrated Remote Management Controller)
Chipset	Intel C602
Processor	Intel Xeon E5-2600 v2 product family
Storage	Up to 16 x 2.5" or 8 x 3.5" drives
RAID	RAID 0, 1, 5, 6, 10, 50, 60
Network	4 x Gigabit Ethernet ports
Expansion Slots	6 x PCIe 3.0 slots
Operating System Support	Windows Server, Red Hat, SUSE, VMware
Memory Type	DDR3 RDIMM/LRDIMM
Power Supply	Hot-plug redundant power supply units
