176 Upgrade and Maintenance Manual
RX300 S8
Expansion cards and backup units
9.2.1.3 Installing a slot bracket to the Network adapter D2745

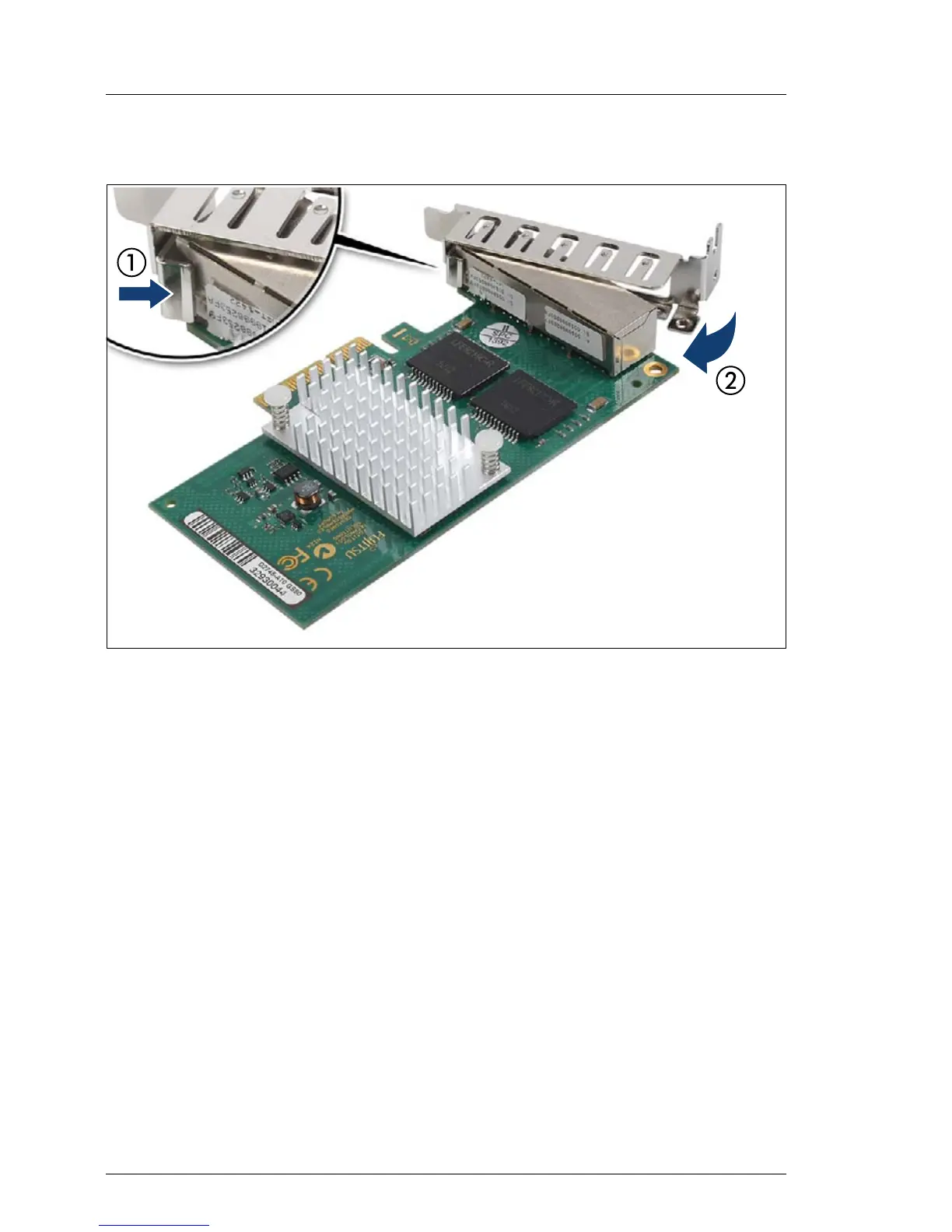

Figure 77: Network adapter D2745 - Mounting the slot bracket (A)
Ê Hinge the slot bracket to the plug shell as shown (1).
Ê Fold the slot bracket towards the controller until the threaded mounting tab
is aligned with the screw hole on the controller (2).
