RX300 S8
Upgrade and Maintenance Manual 177
Expansion cards and backup units

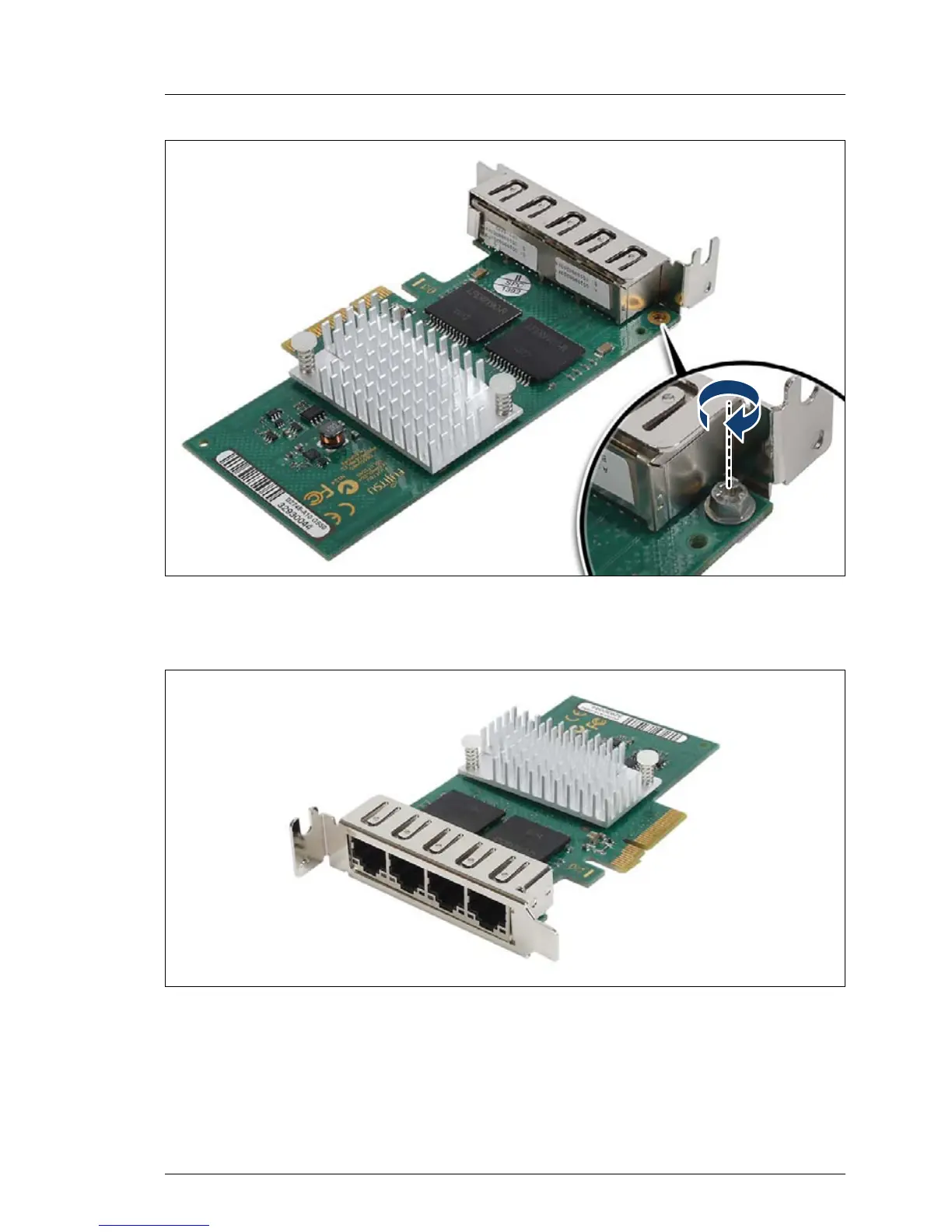

Figure 78: Network adapter D2745 - Mounting the slot bracket (B)
Ê Secure the slot bracket to the controller with one M3 x 4.5 mm screw.
Figure 79: Network adapter D2745 - Mounting the slot bracket (C)
I Assembled network adapter D2745
