RX300 S8
Upgrade and Maintenance Manual 397
Front panel and external connectors
Panelhousing
Ê "Installing the front panel module" on page 365

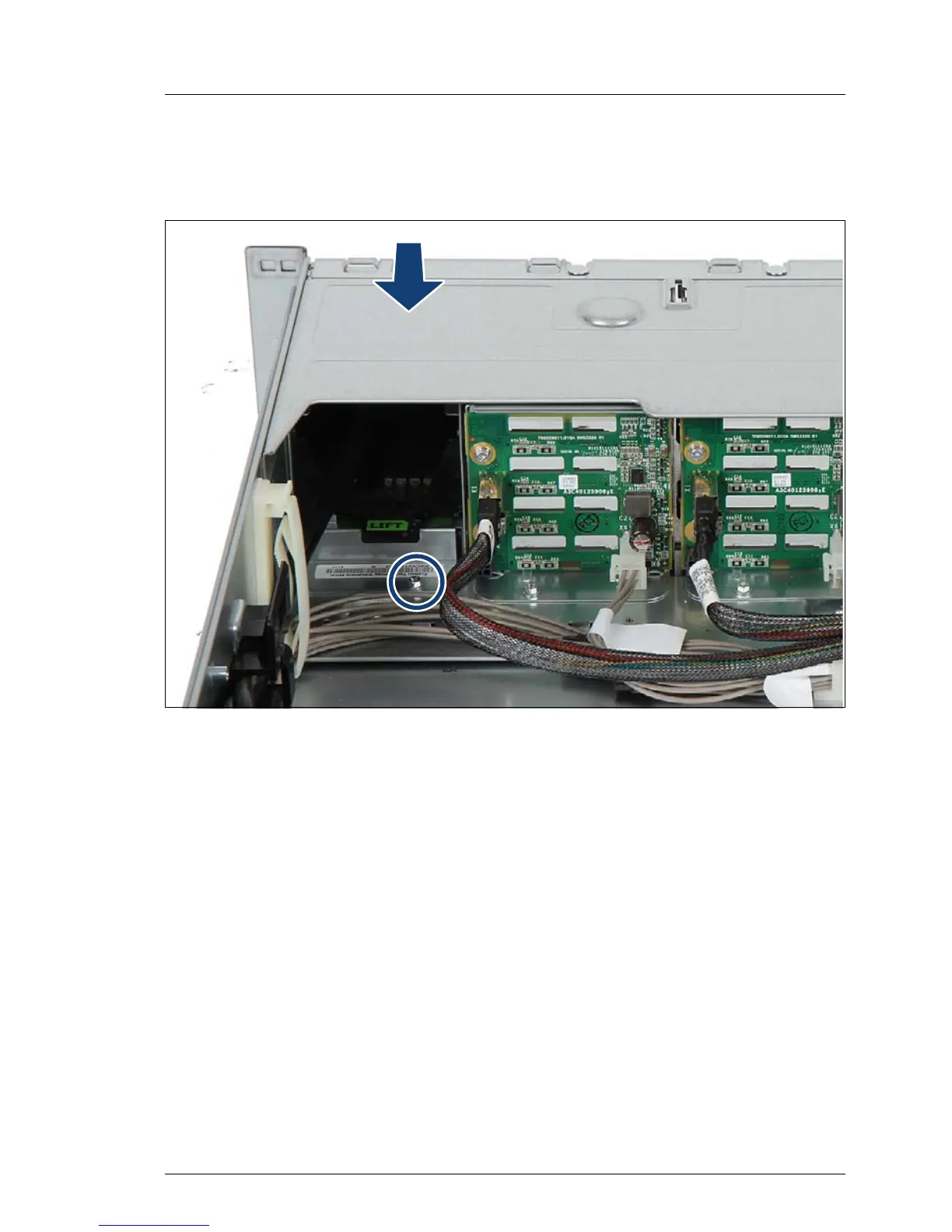

Figure 262: Inserting the front panel cage
Ê Insert the front panel cage.
Ê Fasten the front panel cage with the screw.
13.4.1.4 Concluding steps
Ê Connect all cables from the modules that are installed in the front panel
cage.
– Front panel cable:
– Front LAN cable:
– Front VGA cable:
– ODD cable:
– LSD cable:
Ê "Installing the fan box" on page 164
Ê "Reassembling" on page 63
