Fujitsu PRIMERGY RX300 S8

RX300 S8 Upgrade and Maintenance Manual 351
Accessible drives
12.15.2 Removing the drive cage
LTO4/5/6 drive

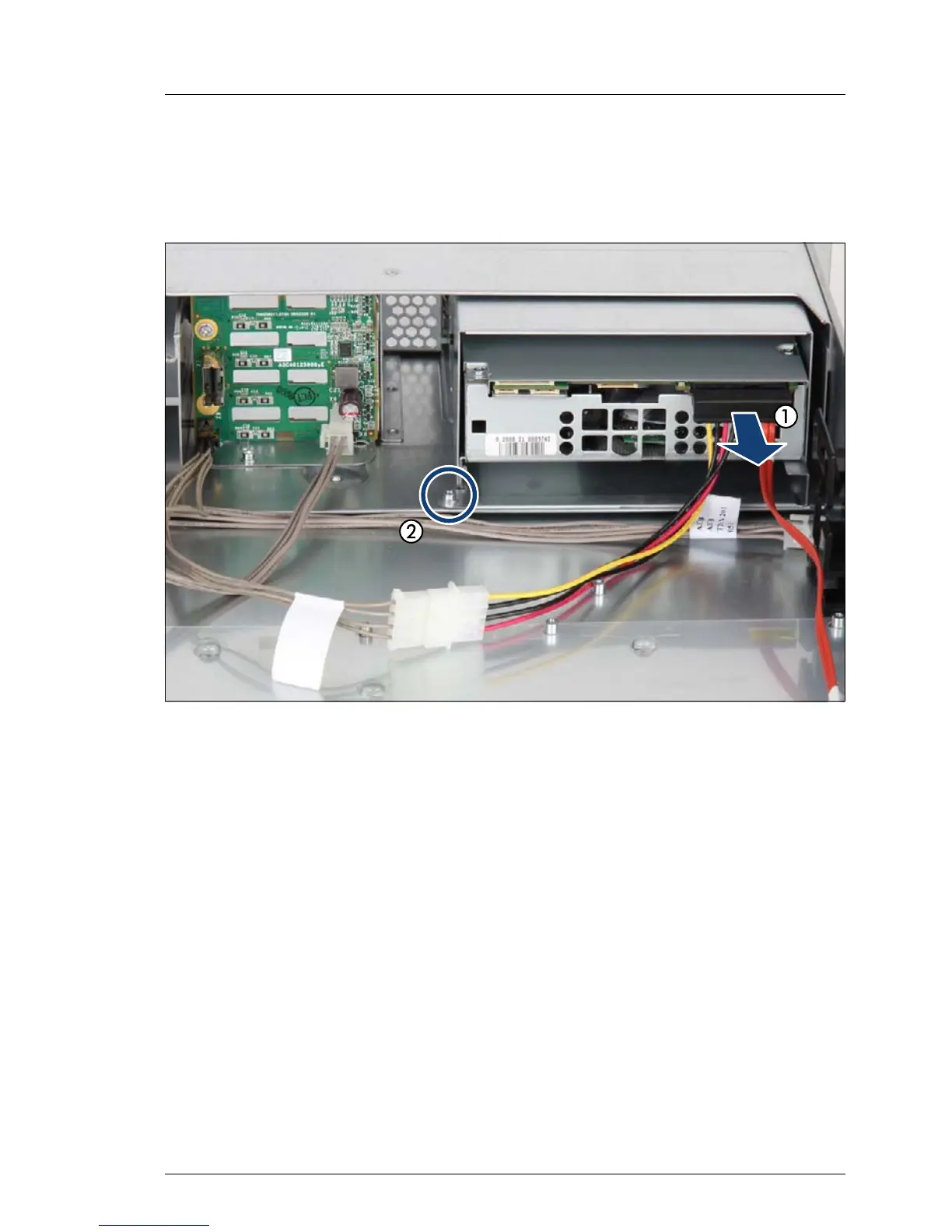

Figure 219: Unlocking the drive cage
Ê Remove the cable from the LTO drive (1).
Ê Remove the screw that fixed the drive cage in the bay (2).
