17.1.3 Server interior

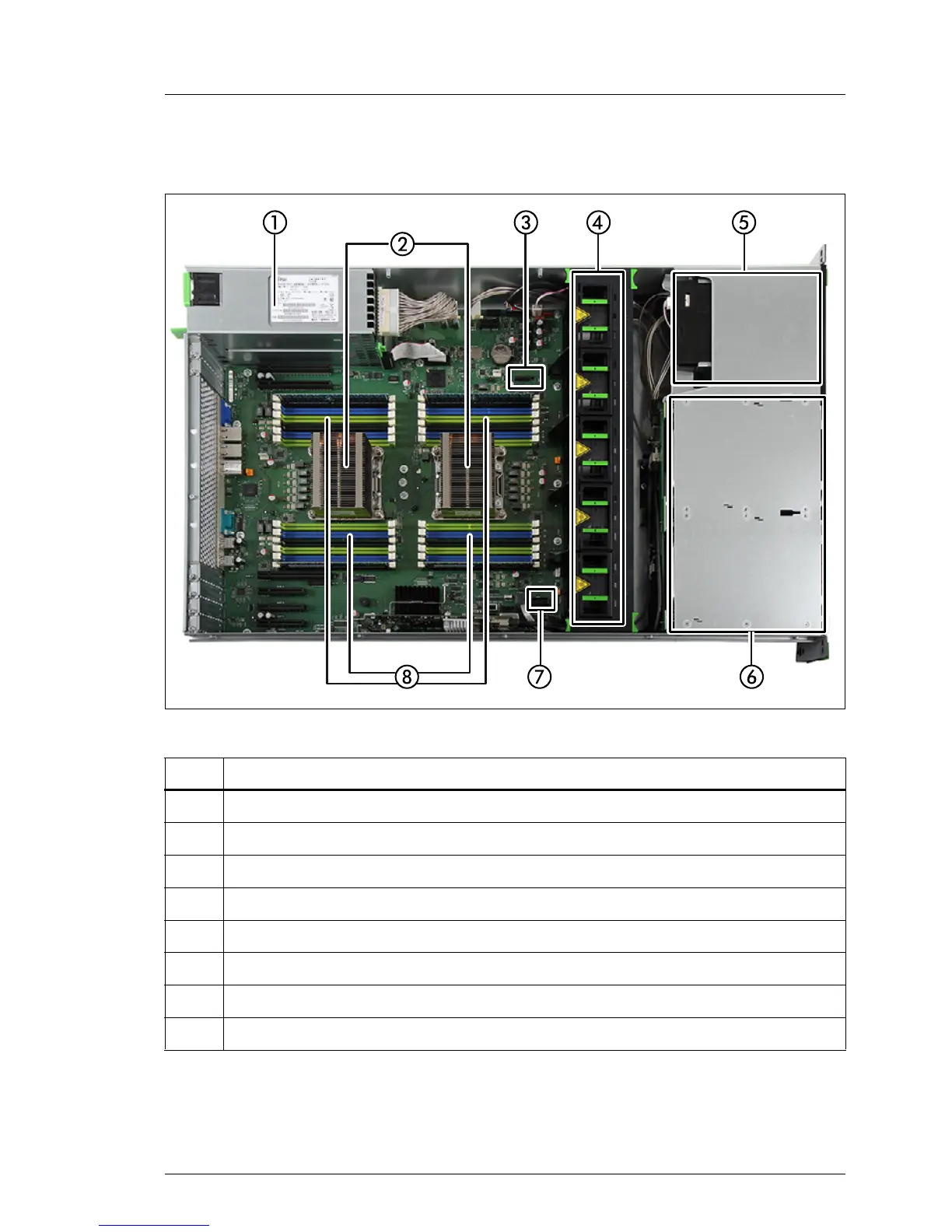

Figure 339: PRIMERGY RX300 S8 interior (example: 2.5-inch HDD model)
Pos. Component
1 Power supply units
2 Processor / CPU heat sink
3TPM
4 Fans
5 Front panel module bay
6 HDD / SSD drive bay
7UFM
8 Memory slots
