Fujitsu PRIMERGY RX300 S8 Upgrade And Maintenance Manual

RX300 S8 Upgrade and Maintenance Manual 319
Accessible drives

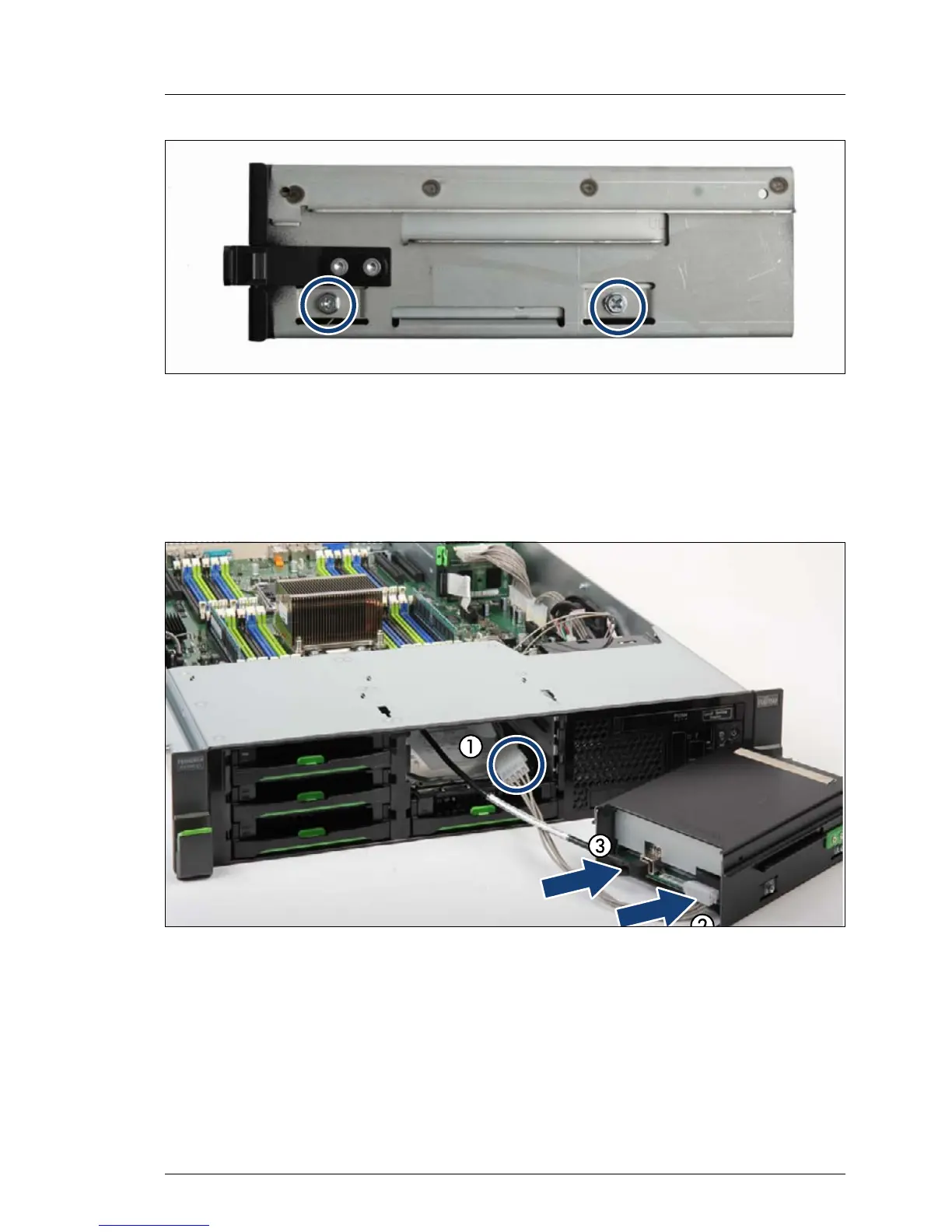

Figure 188: Fastening the tape/RDX drive in the drive cage
Ê Fasten the tape/RDX drive with 4 screws in the drive cage
12.8.3 Installing the tape/RDX drive
Figure 189: Connecting the cables to the tape/RDX drive
Ê Route the power cable through the bay.
Ê Connect the power adapter cable C16 to the power cable C5 (1).
Ê Connect the power adapter cable C16 to the tape/RDX drive (2).
Ê Connect the USB cable C17 to the tape/RDX drive or USB cable C21 to the
RDX drive (3).
