RX300 S8
Upgrade and Maintenance Manual 131
Hard disk drives / solid state drives
7.2.5.3 Installing a 3.5-inch HDD module
Ê "Installing 3.5-inch HDD modules" on page 124
7.2.5.4 Concluding steps
Ê "Performing a RAID array rebuild" on page 96
7.3 2.5-inch HDD / SSD configurations
7.3.1 Mounting order for 2.5-inch HDDs / SSDs
Maximum configuration: 16x 2.5-inch HDDs / SSDs
Basic information
– Solid state drives (SSDs) are always equipped before installing hard disk
drives.
– If only one HDD/SSD module is installed, the HDD/SSD module will be
installed in position 1. Empty bays must be equipped with a dummy module.
7.3.1.1 HDD / SSD mounting order for 4x 2.5-inch HDD / SSD
configuration

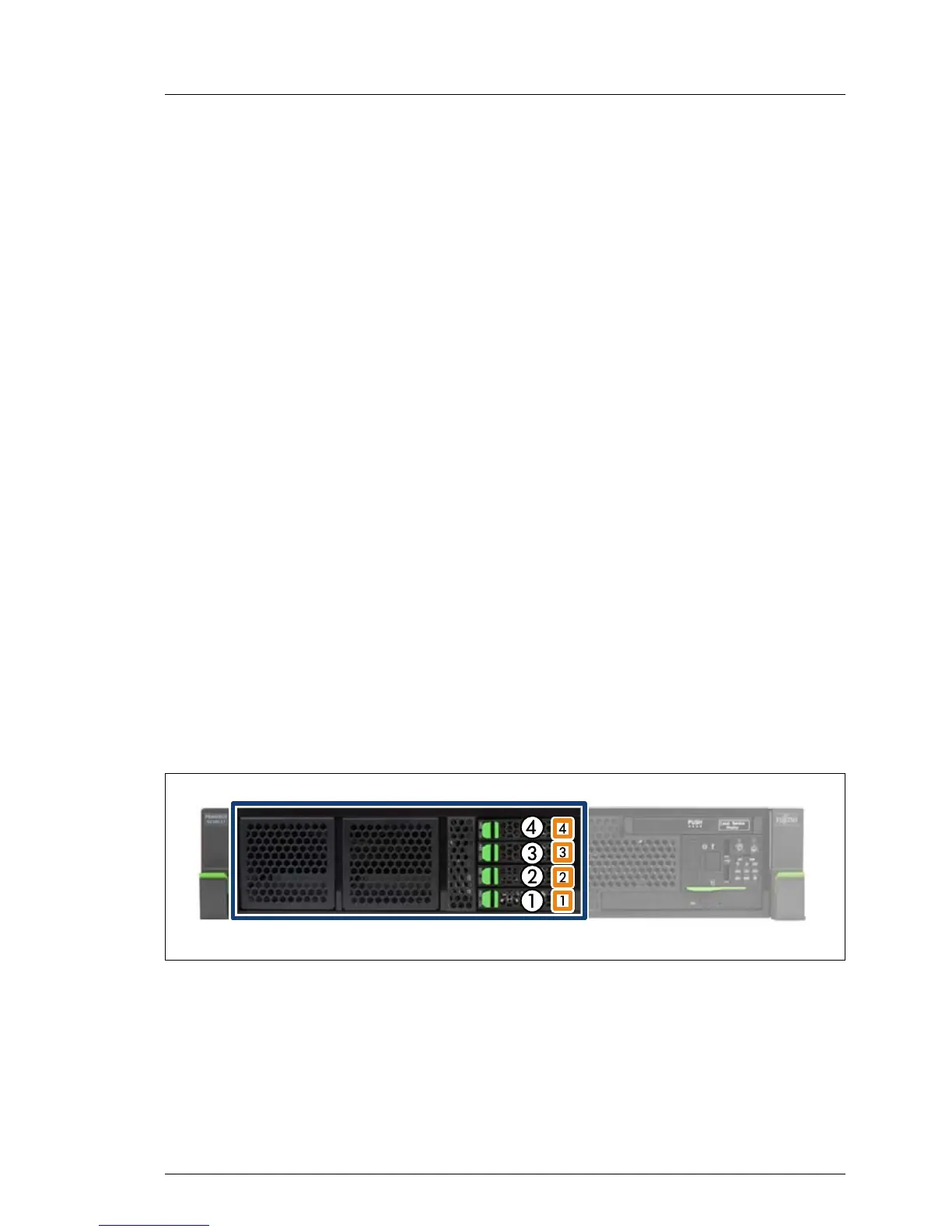

Figure 38: 2.5-inch HDD / SSD mounting order configuration 2 and 3
7.3.1.2 HDD / SSD naming scheme for 4x 2.5-inch HDD / SSD
configuration
I The HDD / SSD numbering as listed in the ServerView RAID Manager
differs from the HDD mounting order:
