202 Upgrade and Maintenance Manual
RX300 S8
Expansion cards and backup units

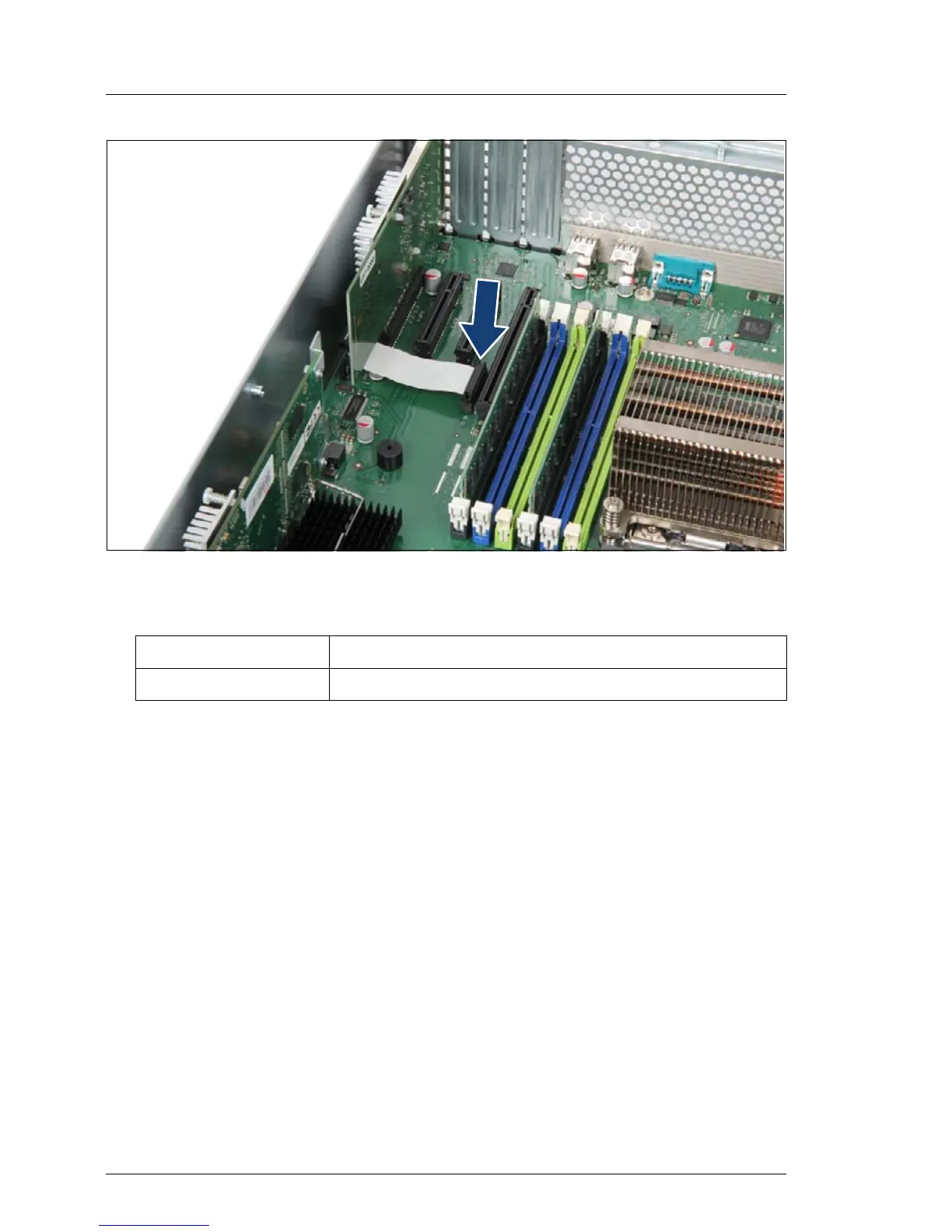

Figure 98: Connecting cable
Ê Connect the loose end of the NCSI sideband cable to the system board:
9.5.2.5 Concluding steps
Ê "Reassembling" on page 63
Ê "Connecting the server to the power source" on page 69.
Ê "Switching on the server" on page 71.
Ê In order to configure an expansion card that has been installed or replaced,
the card’s Option ROM has to be enabled in the system board BIOS. If
applicable, proceed as described in section "Enabling Option ROM scan" on
page 85.
Ê "Enabling SVOM boot watchdog functionality" on page 89.
Ê "Enabling BitLocker functionality" on page 95.
Ê If applicable, "After replacing / upgrading LAN controllers" on page 99.
Connector Cable
NC-SI NCSI sideband cable T26139-Y4015-V101
