Fujitsu PRIMERGY RX300 S8

126 Upgrade and Maintenance Manual RX300 S8
Hard disk drives / solid state drives
7.2.3.3 Installing a 3.5-inch HDD module

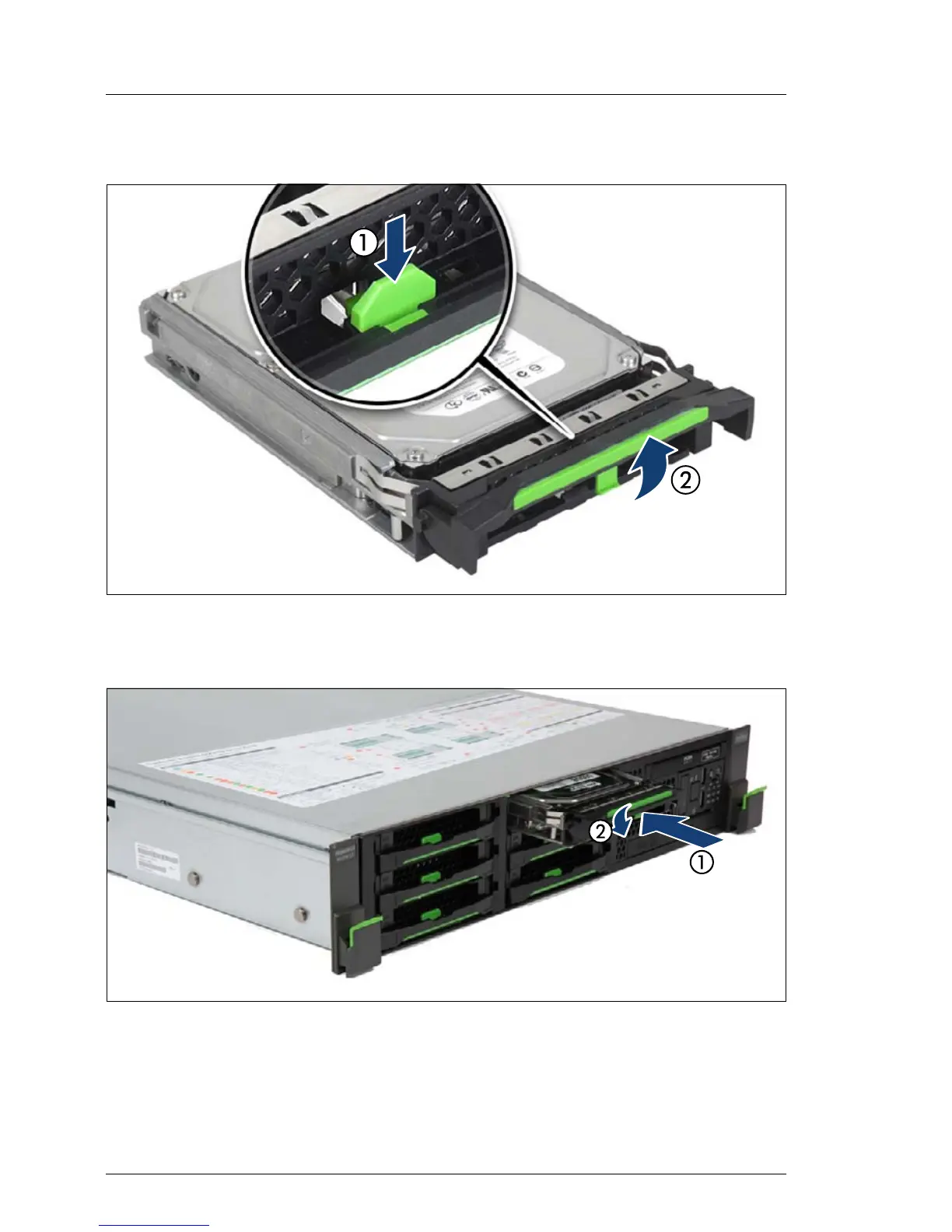

Figure 34: Opening the 3.5-inch HDD module locking lever
Ê While pressing down on the locking button (1) fold up the lever (2).
Figure 35: Inserting the 3.5-inch HDD module
Ê Insert the HDD module into a drive bay and carefully push back as far as it
will go (1).
Ê Fold down the lever to lock the HDD module in place (2).
