332 Upgrade and Maintenance Manual
RX300 S8
Accessible drives
Ê Fasten the drive cage with the screw (1).
Ê Connecting the power cable C5 to the tape/RDX drive (3).
Ê Connecting the USB cable C17 to the tape/RDX drive (2).
Figure 202: Removing the tape/RDX drive

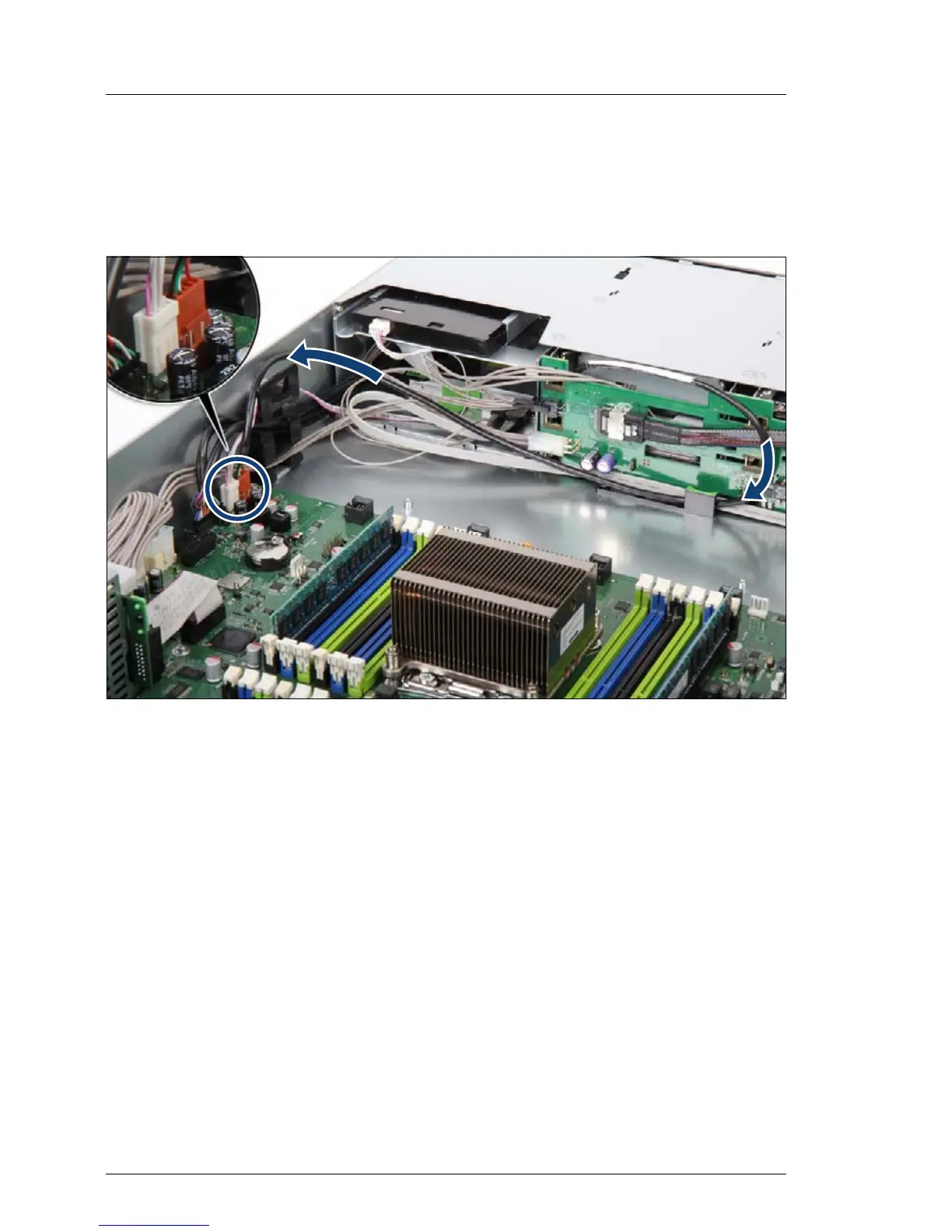

Ê Connect the USB cable C17 to the connector USB INT1 on the system
board.
Ê Route the cables as shown.
12.11.4.2 Connecting the RDX drive to the USB 3.0 interface card
Ê Install the USB 3.0 interface card, see section "Installing a slot bracket to the
USB 3.0 interface card D3305" on page 180 and section "Installing an
expansion card" on page 183.
