RX300 S8
Upgrade and Maintenance Manual 333
Accessible drives

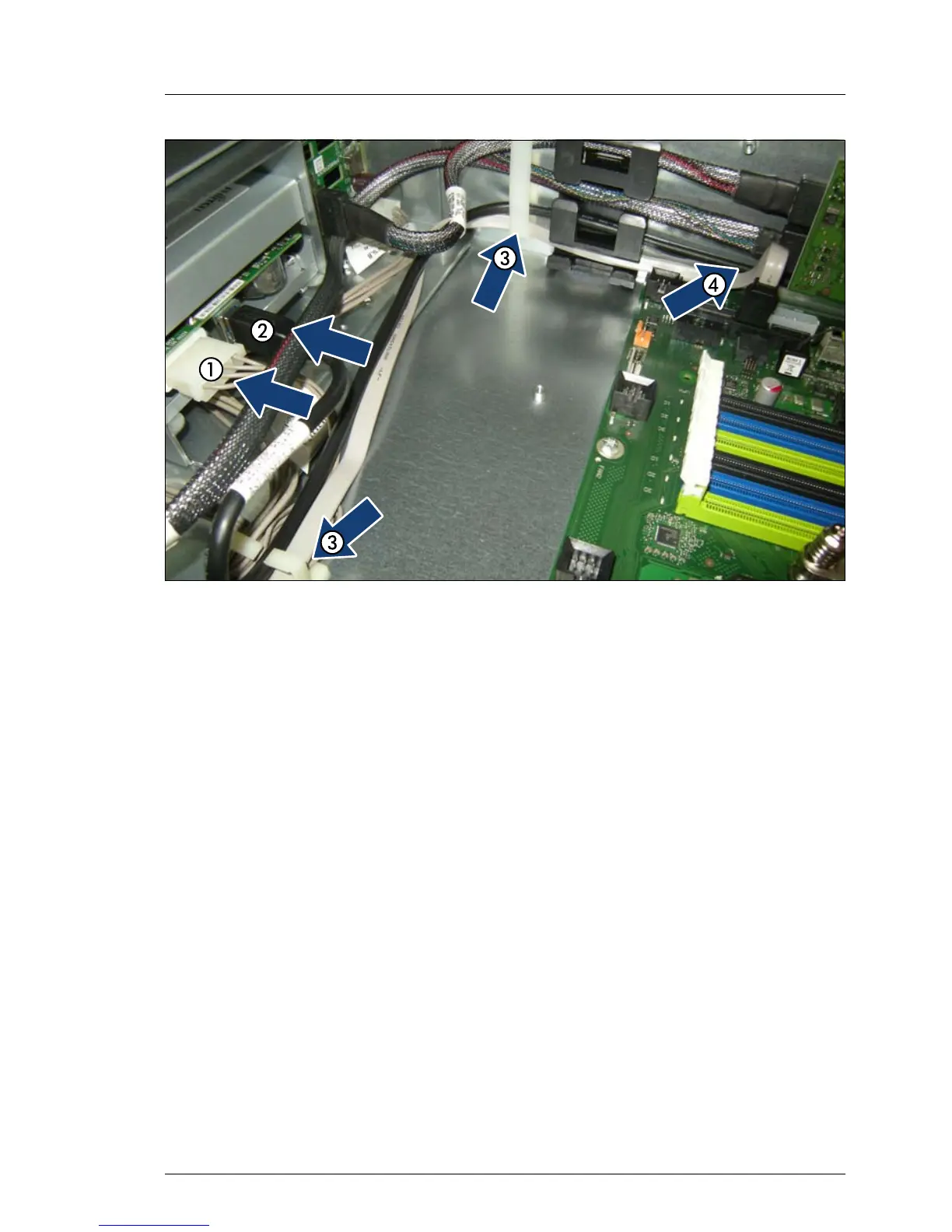

Figure 203: Connecting the USB cable to the USB 3.0 interface card
Ê Fasten the drive cage with the screw.
Ê Connecting the power cable C5 to the RDX drive (1).
Ê Connecting the USB cable C21 to the RDX drive (2).
Ê Route the cable C21 as shown in the two cable clamps (3) and behind the
SAS RAID controller (4).
