Fujitsu PRIMERGY RX300 S8 Upgrade And Maintenance Manual

240 Upgrade and Maintenance Manual RX300 S8
Expansion cards and backup units
Ê Carefully unlatch and fold down the locking bail on the SFP+ transceiver
module to eject the transceiver from the socket connector.

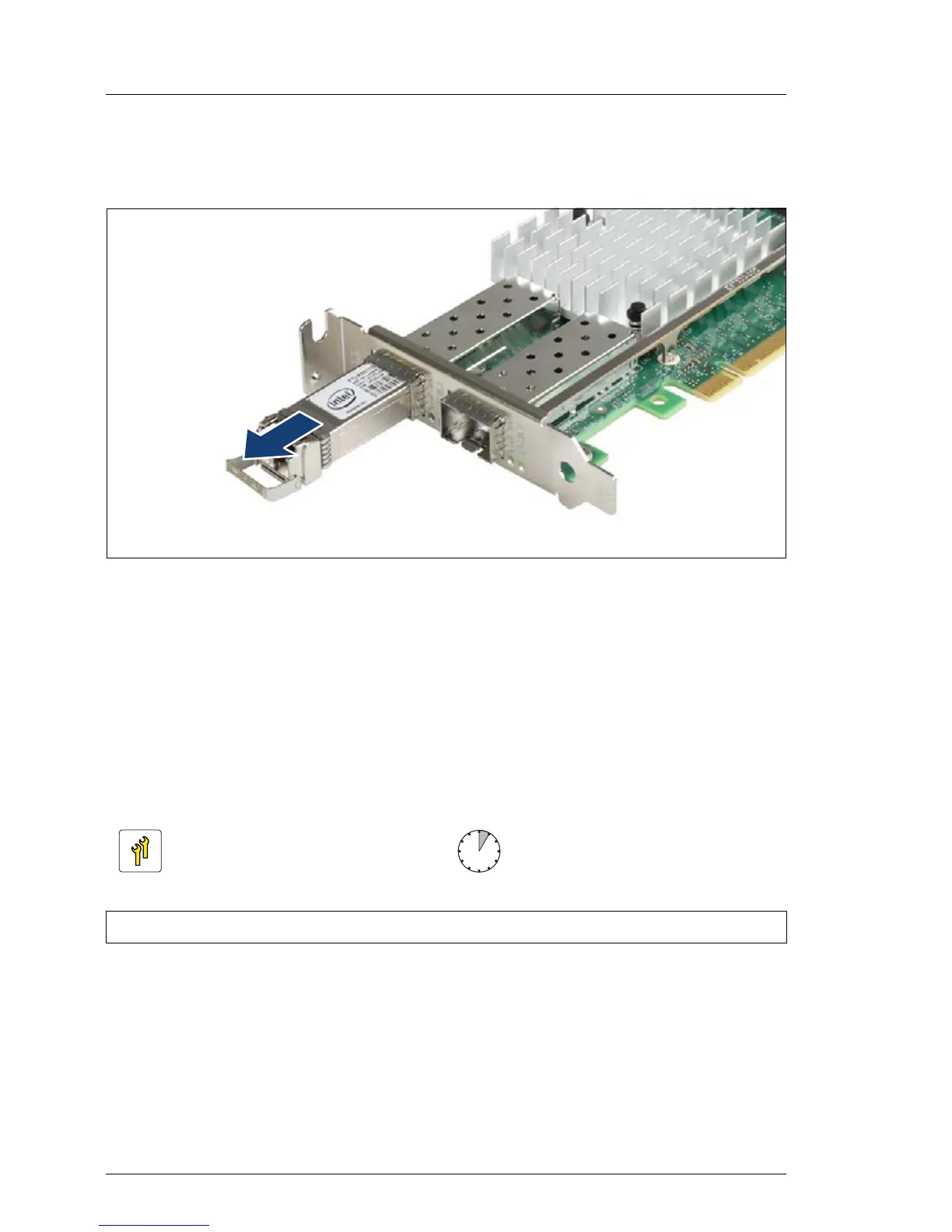

Figure 130: Removing the SFP+ transceiver
Ê Pull the SFP+ transceiver module out of its socket connector.
Ê Reattach the protective optical port plug to the transceiver optical bores.
I Place the removed SFP+ transceiver module in an antistatic bag or
other protective environment.
9.7.3 Replacing SFP+ transceiver modules
For Fiber Channel over Ethernet (FCoE) configurations, the ethernet server
adapter is equipped with one or two SFP+ (small form-factor pluggable)
transceiver modules.
Upgrade and Repair Unit
(URU)
Hardware: 5 minutes
Tool: tool-less

Fujitsu PRIMERGY RX300 S8 Specifications

General

Memory	Up to 768 GB DDR3
Form Factor	2U rack server
Remote Management	iRMC S4 (Integrated Remote Management Controller)
Chipset	Intel C602
Processor	Intel Xeon E5-2600 v2 product family
Storage	Up to 16 x 2.5" or 8 x 3.5" drives
RAID	RAID 0, 1, 5, 6, 10, 50, 60
Network	4 x Gigabit Ethernet ports
Expansion Slots	6 x PCIe 3.0 slots
Operating System Support	Windows Server, Red Hat, SUSE, VMware
Memory Type	DDR3 RDIMM/LRDIMM
Power Supply	Hot-plug redundant power supply units
