RX300 S8
Upgrade and Maintenance Manual 447
Conversion configurations
15.2.5.2 Panelhousing in bay 5

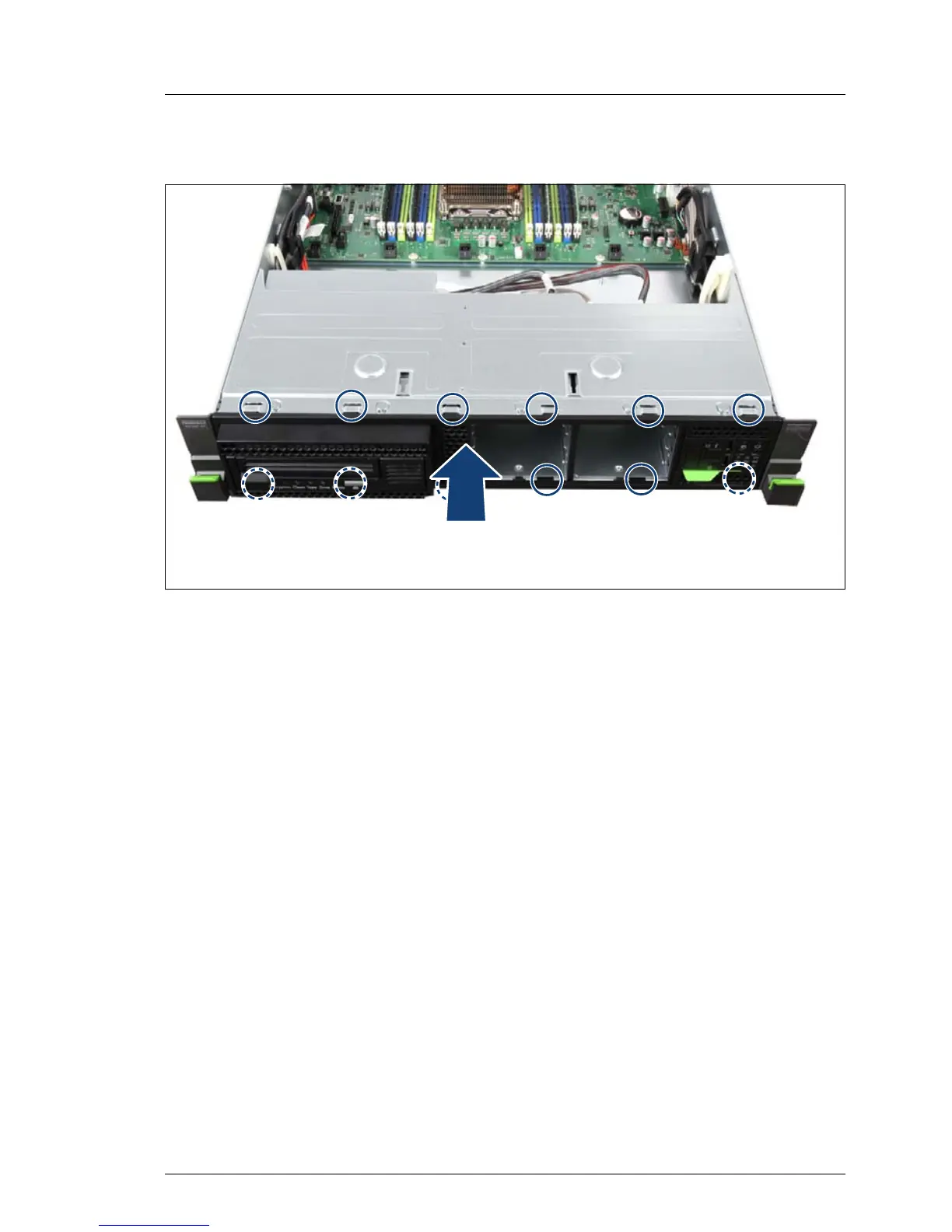

Figure 297: Installing the front cover for configurations with the smal l front panel cage
Ê Insert the front cover.
I Regard that all tabs will be engaged in the recesses.
