424 Upgrade and Maintenance Manual
RX300 S8
System board and components
Ê "Locating the defective server" on page 51
Ê "Shutting down the server" on page 54
Ê "Disconnecting power cords" on page 54
Ê "Getting access to the component" on page 57
Ê "Removing the fan box" on page 162
14.4.3.2 Removing the TPM
Ê "Removing the TPM" on page 418
Ê Leave the TPM spacer on the system board when removing the defective
TPM.
14.4.3.3 Re-installing the TPM

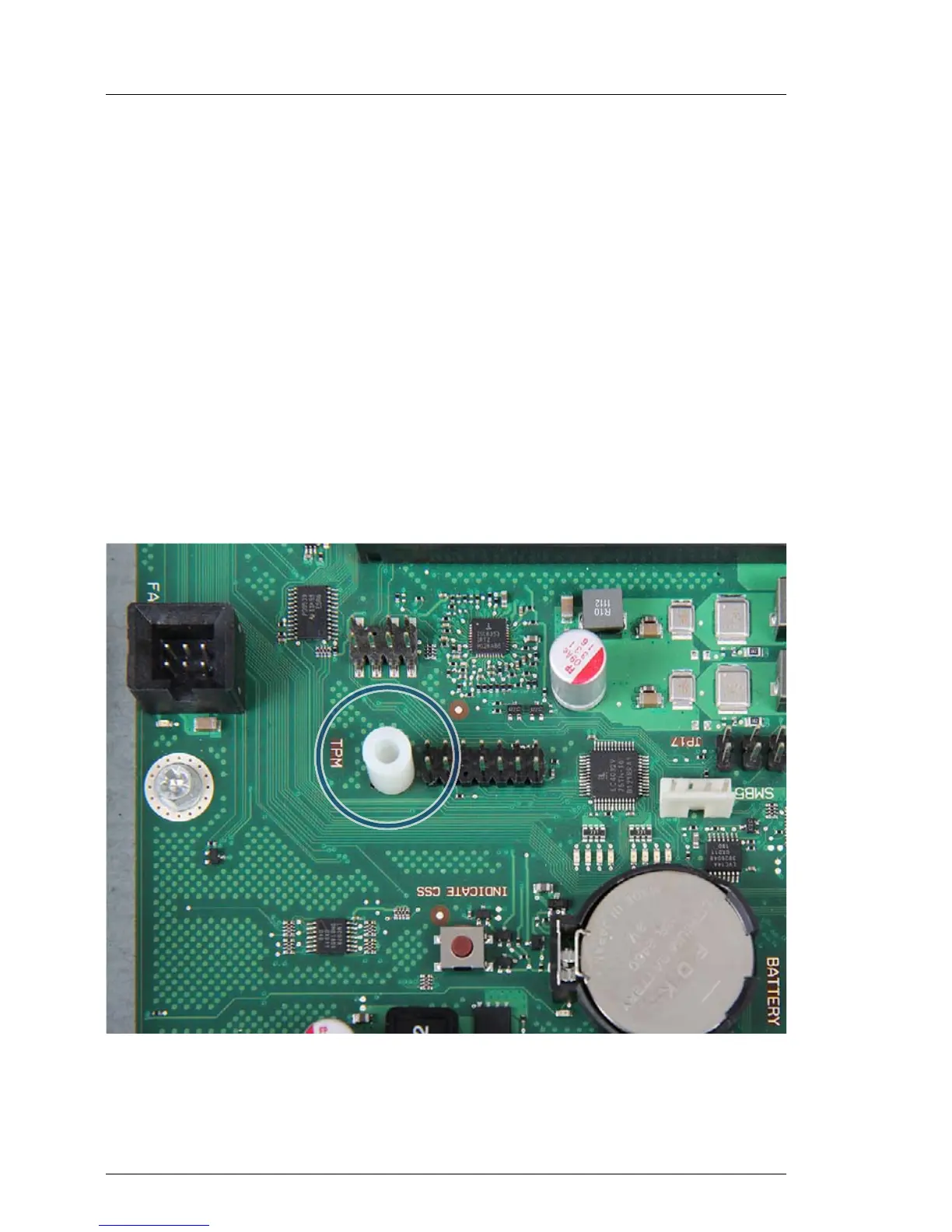

Figure 281: TPM spacer
Ê The TPM spacer is already present on the system board.
Ê "Installing the TPM" on page 413
