Fujitsu PRIMERGY RX300 S8 Upgrade And Maintenance Manual

480 Upgrade and Maintenance Manual RX300 S8
Cables
16.2.8 Configuration 8

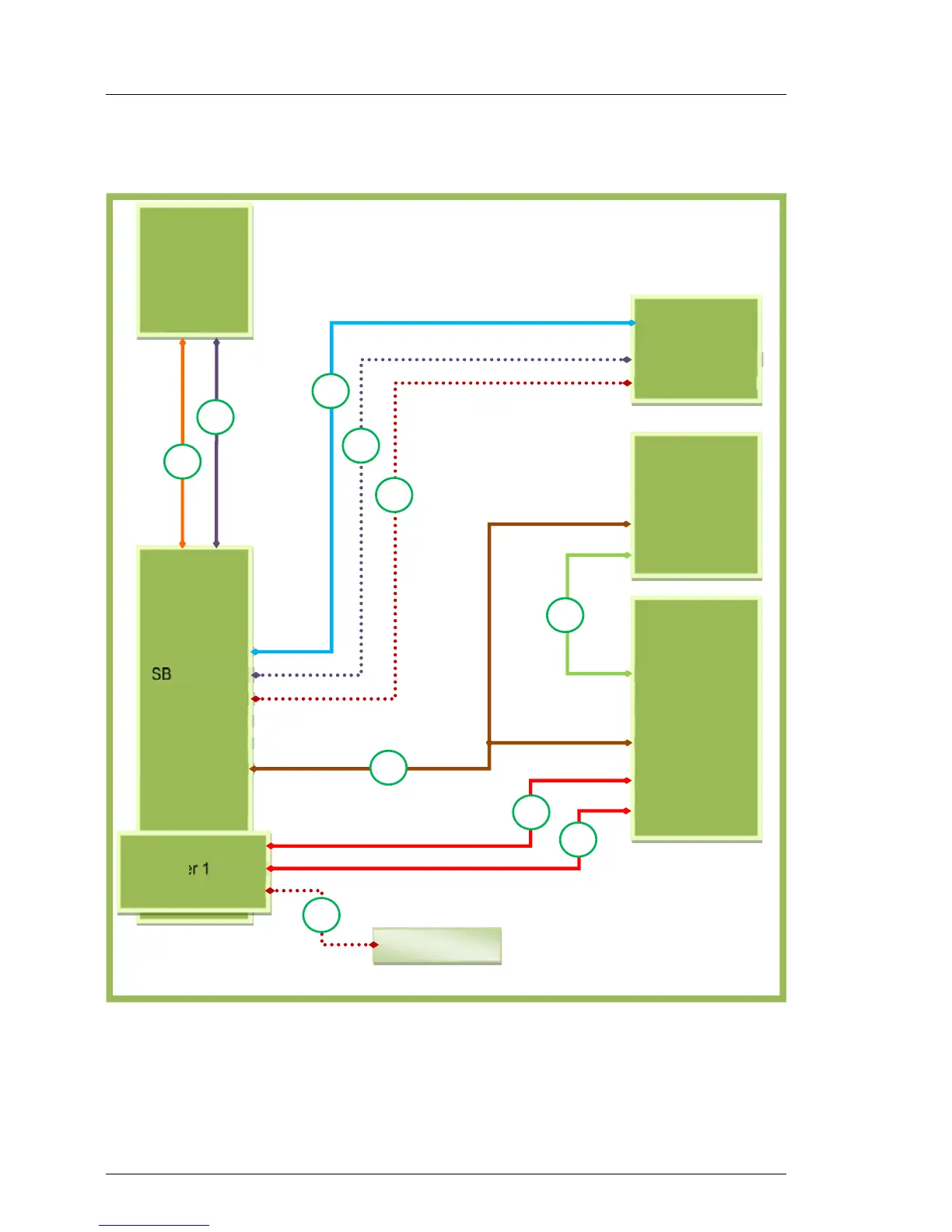

Figure 335: Cabling - 16x 2.5-inch HDD model
SAS BP
4 x 2.5“
SAS BP
12 x2.5“
SB
Power
Backpl
P
W
R
C
T
R
L
P
W
R
Frontpanel +
2x USB
PWR HDD/ODD
P
W
R
C
T
R
L
P
W
R
C1
C2
Front VGA (optional)
Front LAN (o
p
tional)
Frontpanel
Front VGA
Front LAN
C6
C14
C13
SMB 1
X9
X6
SATA 2
X17
X15
X1
C4
SAS 1-4
MLC1
SAS
Controller 1
MLC1
MLC2
iBBU
iBBU
C19
X2
C9
C9
X3
X1
C7

Fujitsu PRIMERGY RX300 S8 Specifications

General

Memory	Up to 768 GB DDR3
Form Factor	2U rack server
Remote Management	iRMC S4 (Integrated Remote Management Controller)
Chipset	Intel C602
Processor	Intel Xeon E5-2600 v2 product family
Storage	Up to 16 x 2.5" or 8 x 3.5" drives
RAID	RAID 0, 1, 5, 6, 10, 50, 60
Network	4 x Gigabit Ethernet ports
Expansion Slots	6 x PCIe 3.0 slots
Operating System Support	Windows Server, Red Hat, SUSE, VMware
Memory Type	DDR3 RDIMM/LRDIMM
Power Supply	Hot-plug redundant power supply units
