232 Upgrade and Maintenance Manual
RX300 S8
Expansion cards and backup units
9.6.7.2 Removing a FBU from the air duct
Ê "Removing the FBU holder from the air duct" on page 230
9.6.7.3 Disconnecting the FBU cable from the FBU

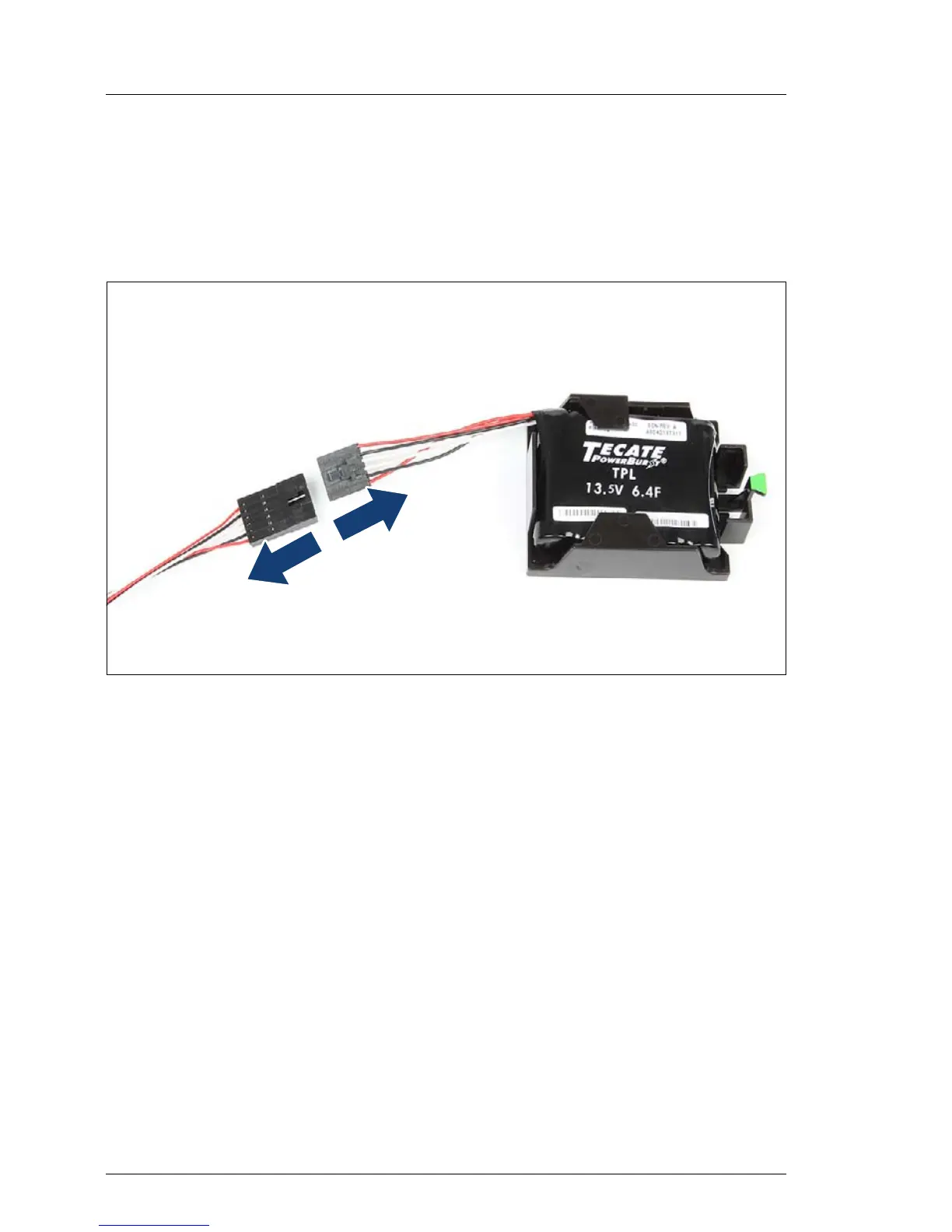

Figure 120: Disconnecting the FBU adapter cable from the FBU
Ê Press down on the locking latch on the FBU cable and disconnect the FBU
adapter cable.
