Fujitsu PRIMERGY RX300 S8 Upgrade And Maintenance Manual

168 Upgrade and Maintenance Manual RX300 S8
Expansion cards and backup units

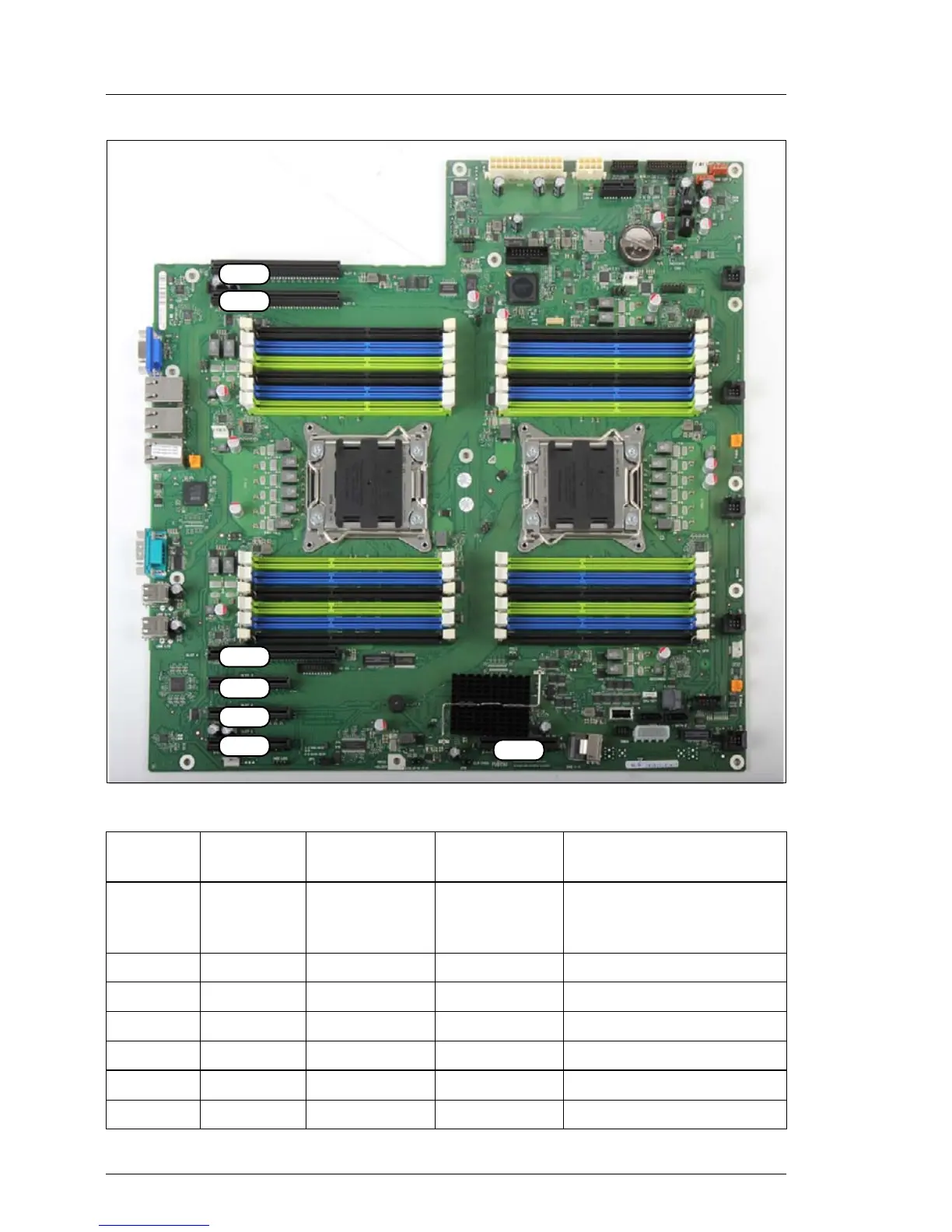

Figure 71: PCI slot overview
PCI slot Type
Mechanical
connector
Electrical
interface
Function
1 PCIe Gen 3 x8 x8
preferred slot for Modular
LAN controller (with NCSI
connector) CPU1
2 PCIe Gen 3 x8 x8 CPU1
3 PCIe Gen 3 x8 x8 CPU1
4 PCIe Gen 3 x16 x8 CPU1
5 PCIe Gen 3 x16 x16 only available with CPU2
6 PCIe Gen 3 x16 x16 only available with CPU2
7 PCIe Gen 3 x8 x8 slot for SAS RAID controller
Slot 7
Slot 6
Slot 5
Slot 4
Slot 3
Slot 2
Slot 1

Fujitsu PRIMERGY RX300 S8 Specifications

General

Memory	Up to 768 GB DDR3
Form Factor	2U rack server
Remote Management	iRMC S4 (Integrated Remote Management Controller)
Chipset	Intel C602
Processor	Intel Xeon E5-2600 v2 product family
Storage	Up to 16 x 2.5" or 8 x 3.5" drives
RAID	RAID 0, 1, 5, 6, 10, 50, 60
Network	4 x Gigabit Ethernet ports
Expansion Slots	6 x PCIe 3.0 slots
Operating System Support	Windows Server, Red Hat, SUSE, VMware
Memory Type	DDR3 RDIMM/LRDIMM
Power Supply	Hot-plug redundant power supply units
