174 Upgrade and Maintenance Manual
RX300 S8
Expansion cards and backup units
9.2.1.2 Installing a slot bracket to the Network adapter D2735

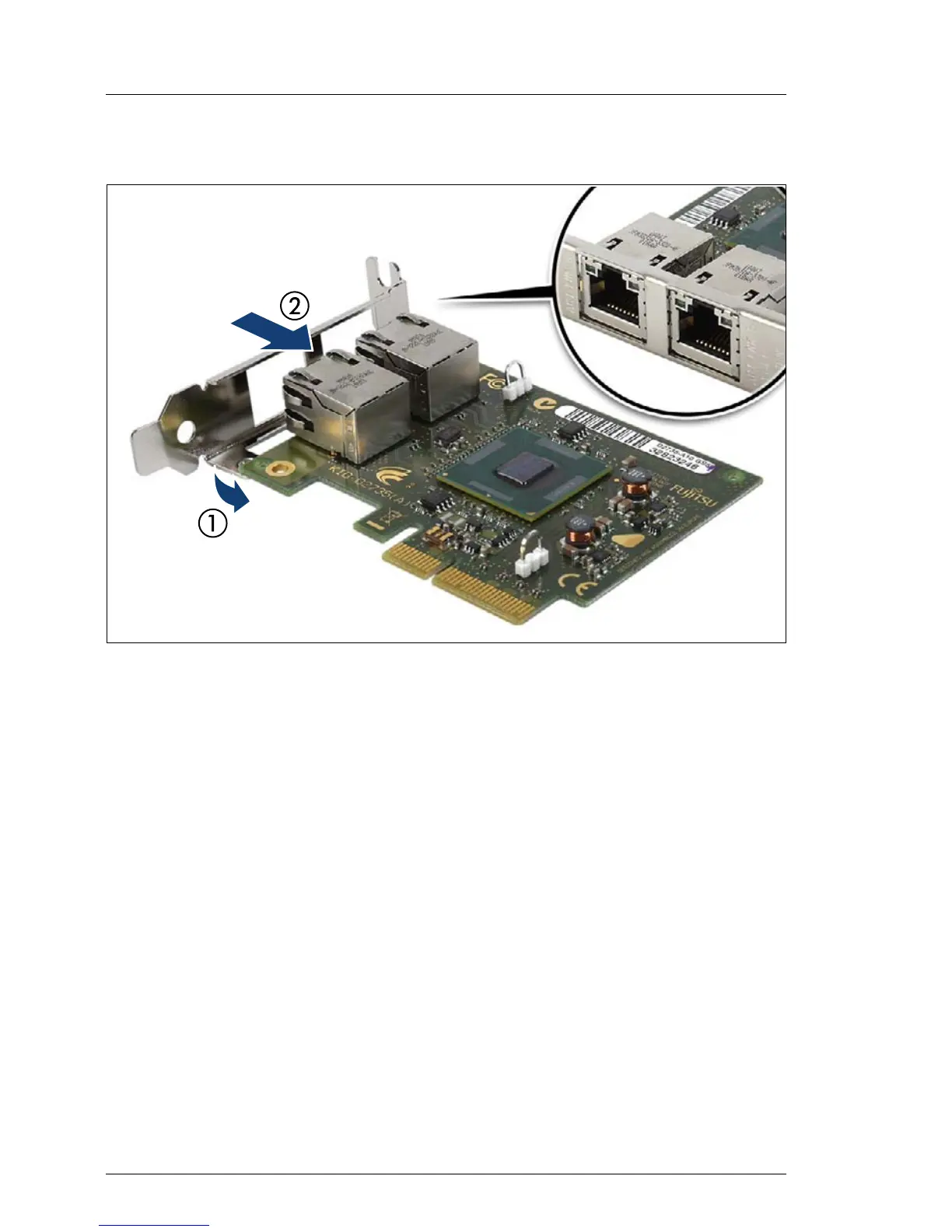

Figure 74: Network adapter D2735 - Mounting the slot bracket (A)
Ê Place the controller on the mounting tabs on the slot bracket (1).
Ê Carefully shift the slot bracket towards the controller (2) until the plug shells
engage with the cut-outs in the slot bracket connector panel (see close-up).
