302 Upgrade and Maintenance Manual
RX300 S8
Accessible drives

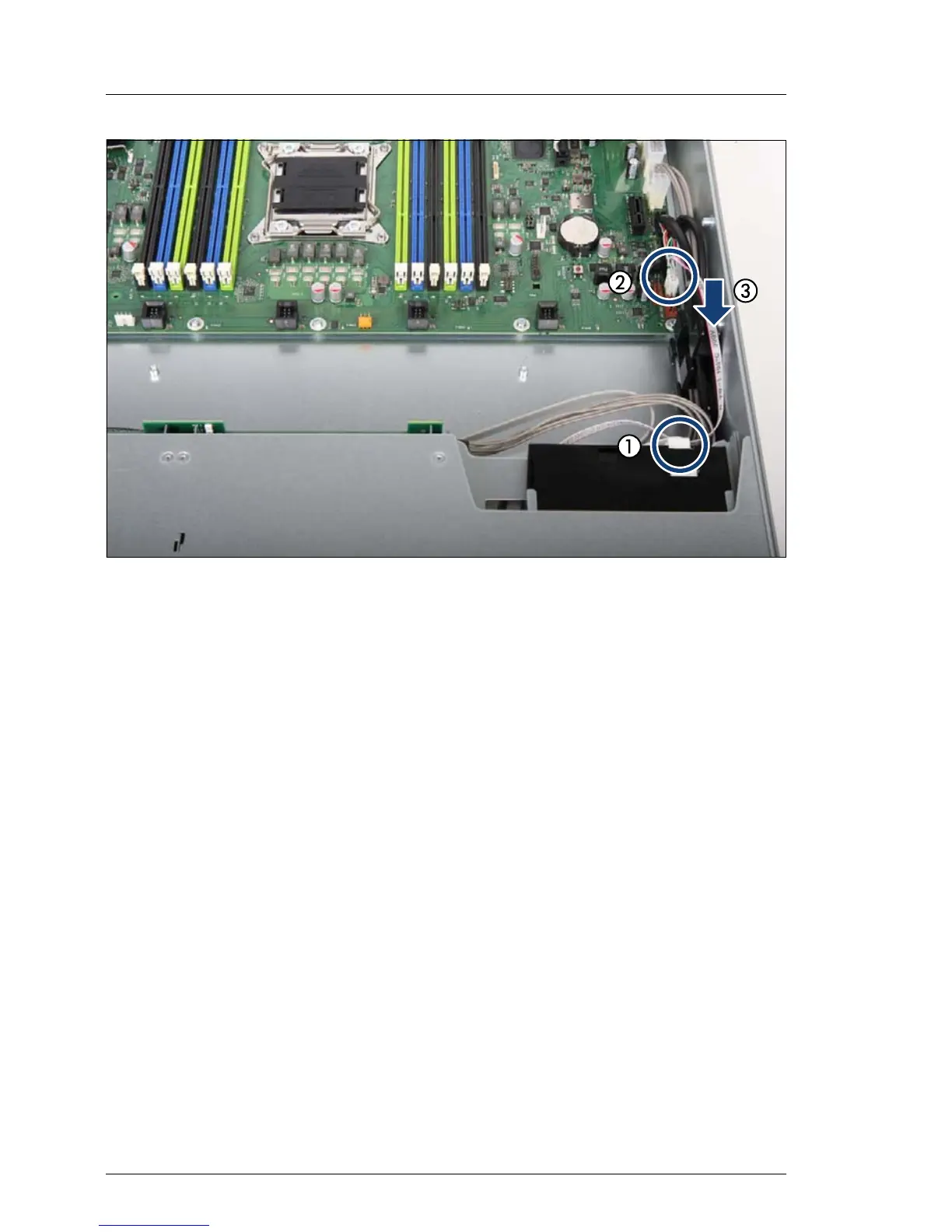

Figure 172: Installing the LSD module
Ê Connect the LSD cable to the LSD module (1).
Ê Connect the LSD cable to the connector SMB1 of the system board (2).
Ê Route the LSD cable through the upper cable guide (3).
12.2.4 Concluding steps
Ê "Installing the fan box" on page 164
Ê "Reassembling" on page 63
Ê "Connecting the server to the power source" on page 69
Ê "Enabling BitLocker functionality" on page 95
