RX300 S8
Upgrade and Maintenance Manual 331
Accessible drives
12.11.3 Installing the tape/RDX drive

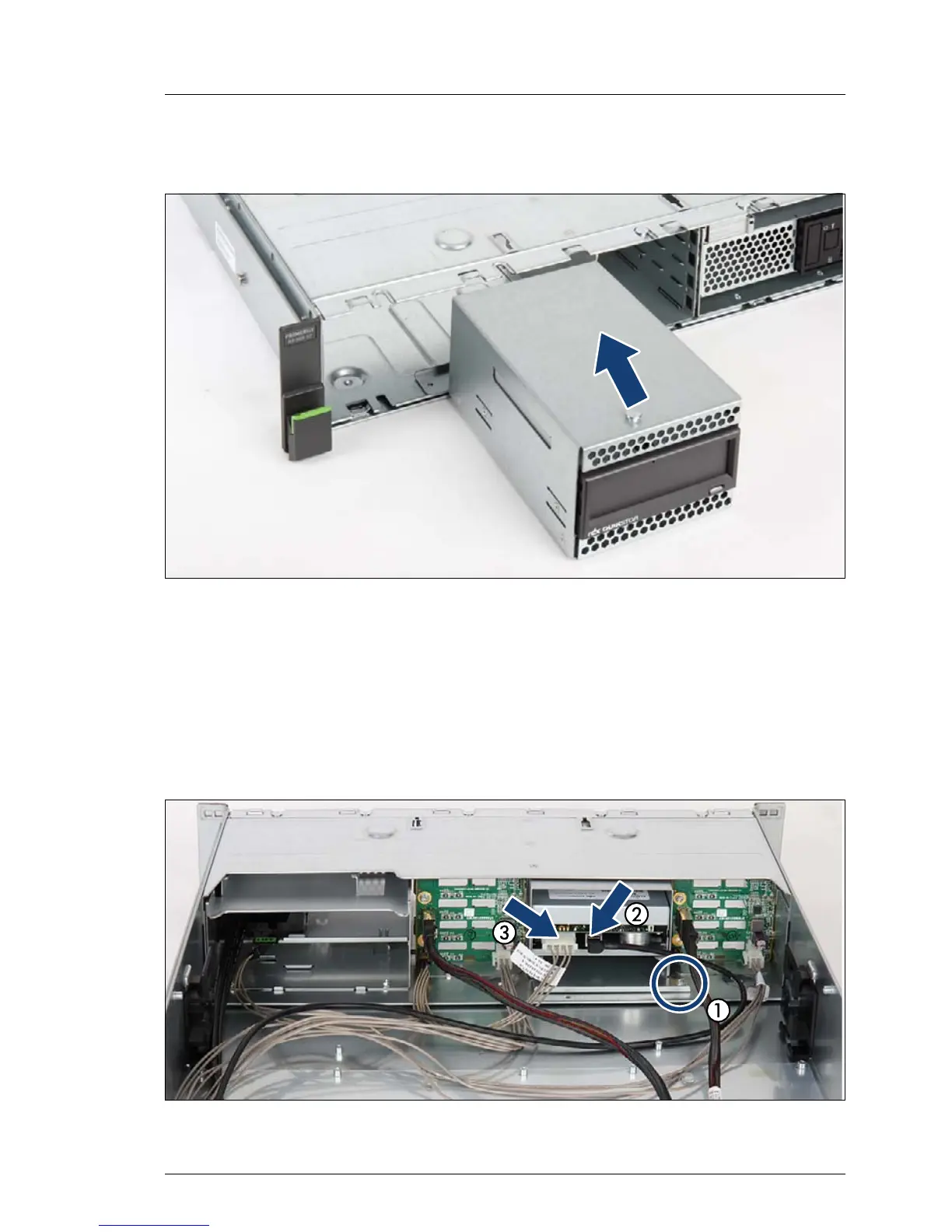

Figure 200: Installing the tape/RDX drive
Ê Insert the tape/RDX with the drive cage in the bay.
12.11.4 Connecting the tape/RDX drive
12.11.4.1 Connecting the tape/RDX drive to the system board
Figure 201: Connecting the cables to the tape/RDX drive
