9.6.2.3 Installing the BBU in the holder

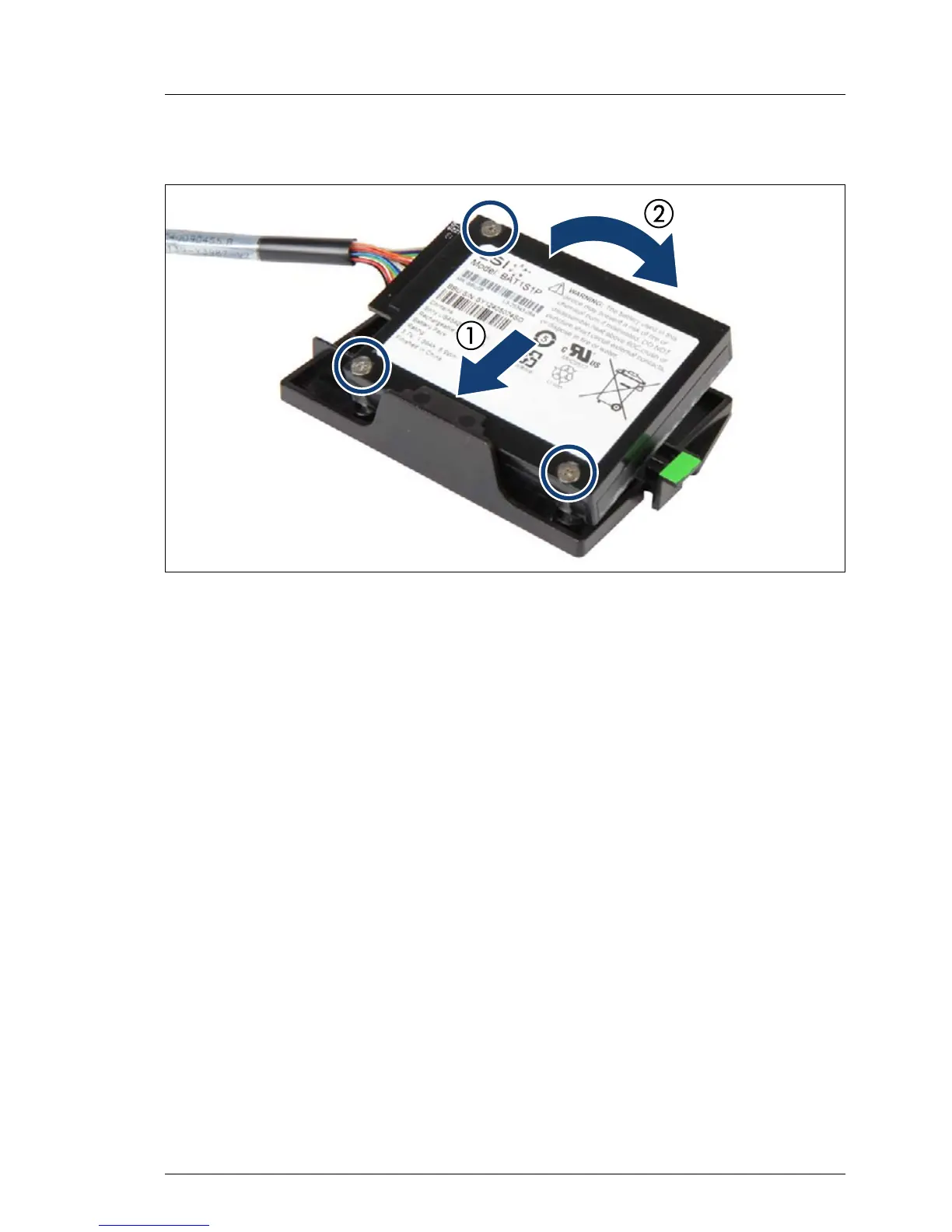

Figure 102: Installing the BBU in the BBU holder (example B)
Ê At a slight angle, fit the BBU under the right retaining bracket on the BBU
holder (1).
Ê Fold down the BBU until it locks in place (2).
9.6.2.4 Installing the BBU holder onto the air duct
I There are different BBUs available. The position of the BBU cable on the
BBU can differ from the following example.
