Fujitsu PRIMERGY RX300 S8

212 Upgrade and Maintenance Manual RX300 S8
Expansion cards and backup units

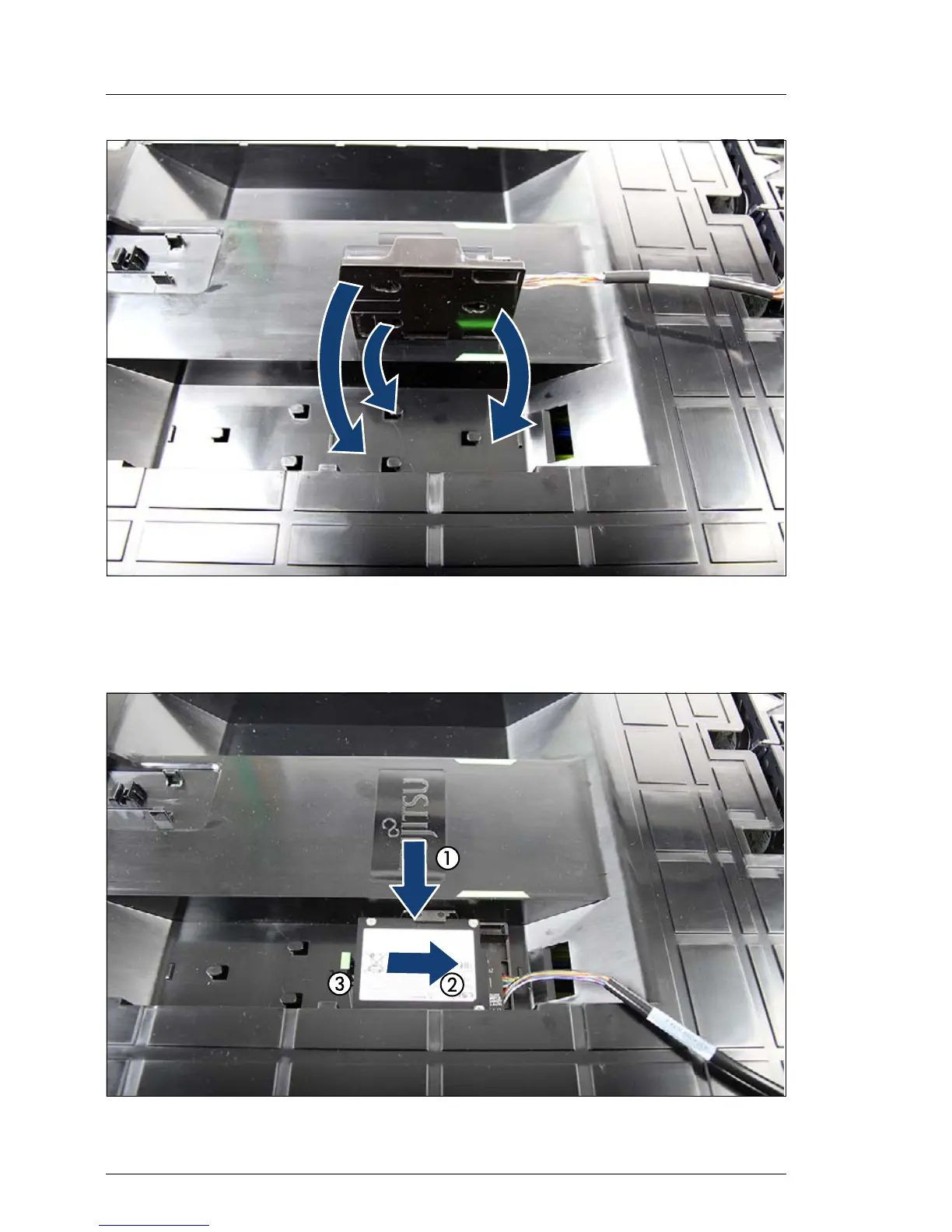

Figure 103: Installing the BBU holder (A)
I Note the positions of the fixation bolts on the air duct and keyhole slots
on the BBU holder.
Figure 104: Installing the BBU holder (B)
