Fujitsu PRIMERGY RX300 S8 Upgrade And Maintenance Manual

372 Upgrade and Maintenance Manual RX300 S8
Front panel and external connectors

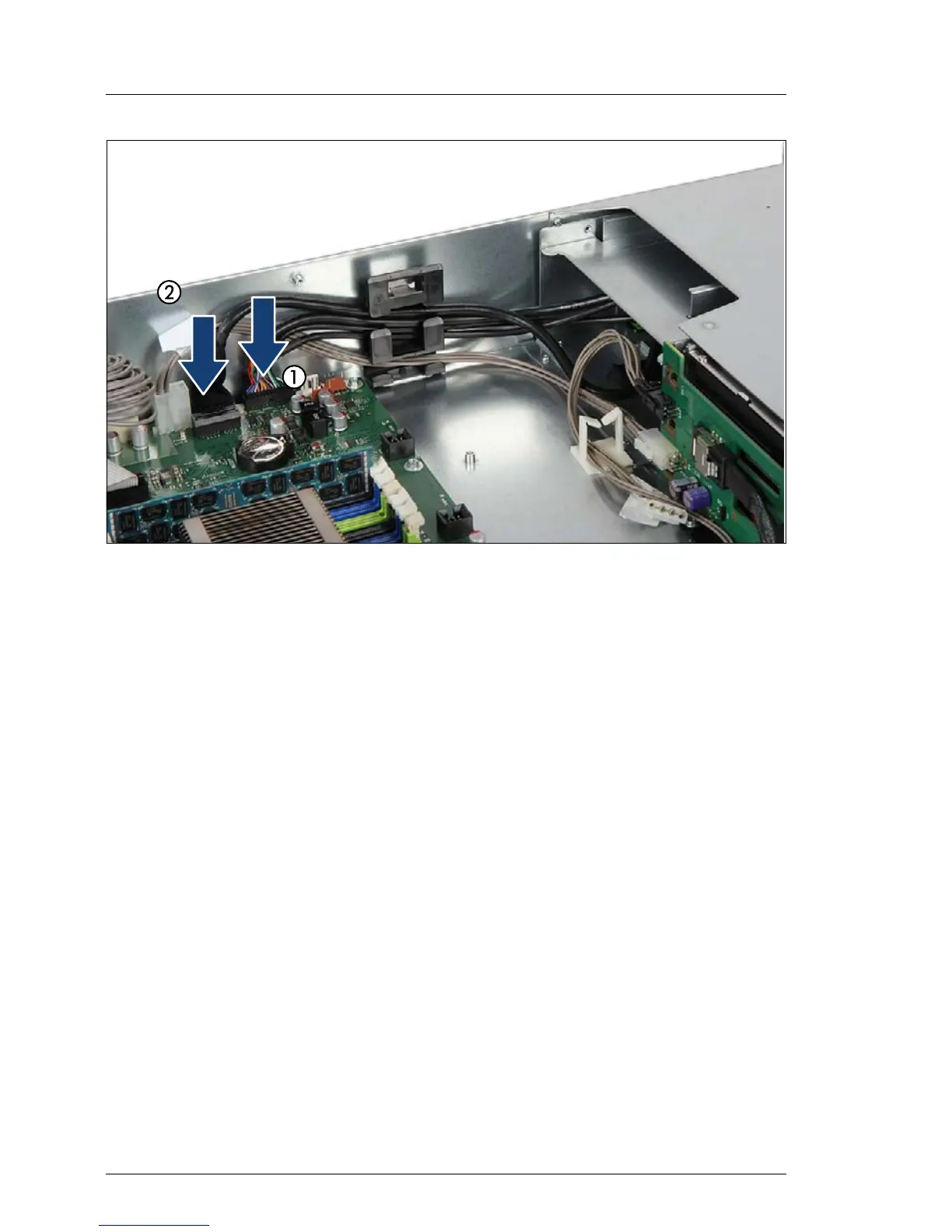

Figure 238: Connecting front panel cables
Ê Run the front panel cable through the cable clamps as shown.
Ê Connect the front panel cable to the system board (1).
Ê Connect the front VGA cable to the system board (2).
Ê If applicable, connect the front LAN connector to the system board.
13.2.1.6 Concluding steps
Perform the following procedures:
Ê "Installing the fan box" on page 164
Ê "Reassembling" on page 63
Ê "Connecting the server to the power source" on page 69
Ê "Switching on the server" on page 71
Ê "Enabling BitLocker functionality" on page 95

Fujitsu PRIMERGY RX300 S8 Specifications

General

Memory	Up to 768 GB DDR3
Form Factor	2U rack server
Remote Management	iRMC S4 (Integrated Remote Management Controller)
Chipset	Intel C602
Processor	Intel Xeon E5-2600 v2 product family
Storage	Up to 16 x 2.5" or 8 x 3.5" drives
RAID	RAID 0, 1, 5, 6, 10, 50, 60
Network	4 x Gigabit Ethernet ports
Expansion Slots	6 x PCIe 3.0 slots
Operating System Support	Windows Server, Red Hat, SUSE, VMware
Memory Type	DDR3 RDIMM/LRDIMM
Power Supply	Hot-plug redundant power supply units
