Fujitsu PRIMERGY RX300 S8 Upgrade And Maintenance Manual

144 Upgrade and Maintenance Manual RX300 S8
Hard disk drives / solid state drives
7.4.1.2 Removing the 3.5-inch HDD SAS / SATA backplane

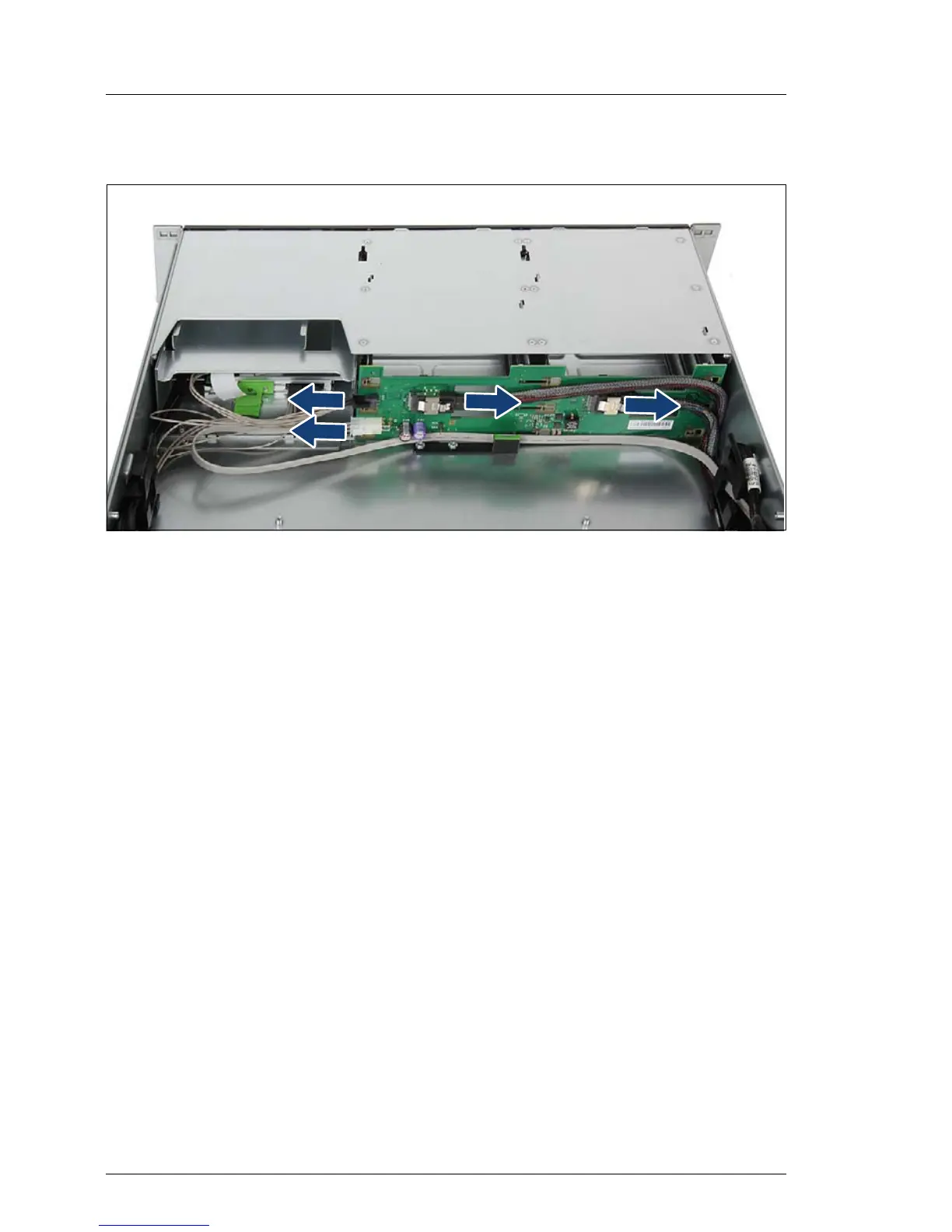

Figure 50: Disconnecting cables from the 3.5-inch HDD SAS / SATA backplane
Ê Disconnect all cables from the 3.5-inch HDD SAS / SATA backplane:
– SAS cables
– Power cables

Fujitsu PRIMERGY RX300 S8 Specifications

General

Memory	Up to 768 GB DDR3
Form Factor	2U rack server
Remote Management	iRMC S4 (Integrated Remote Management Controller)
Chipset	Intel C602
Processor	Intel Xeon E5-2600 v2 product family
Storage	Up to 16 x 2.5" or 8 x 3.5" drives
RAID	RAID 0, 1, 5, 6, 10, 50, 60
Network	4 x Gigabit Ethernet ports
Expansion Slots	6 x PCIe 3.0 slots
Operating System Support	Windows Server, Red Hat, SUSE, VMware
Memory Type	DDR3 RDIMM/LRDIMM
Power Supply	Hot-plug redundant power supply units
