RX300 S8
Upgrade and Maintenance Manual 145
Hard disk drives / solid state drives

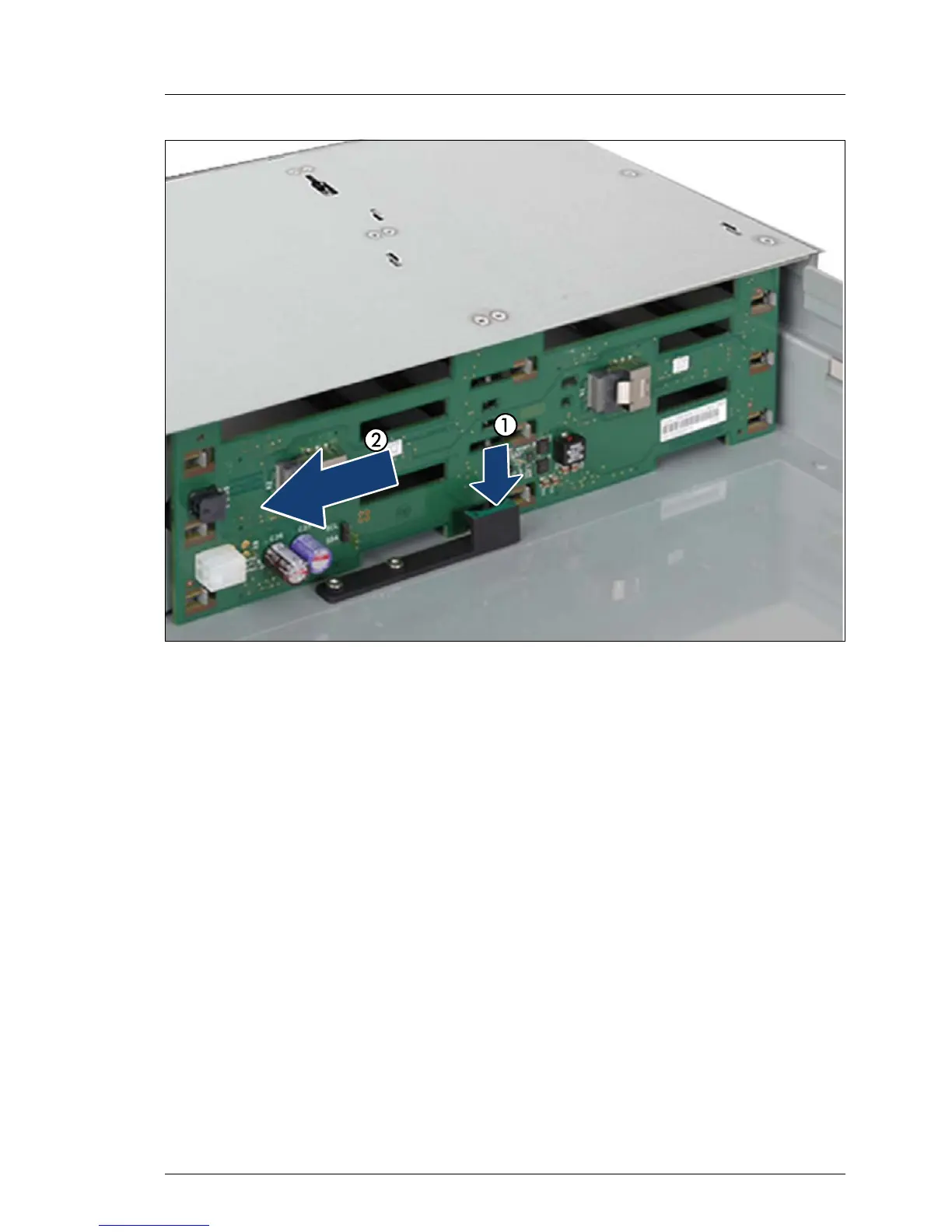

Figure 51: Removing the 3.5-inch HDD SAS / SATA backplane (A)
Ê Unlock the 3.5-inch HDD SAS / SATA backplane (1) and push the
SAS / SATA backplane in the direction of the arrow (2) until it unlocks out of
the locking noses and the locking mechanism on the bottom of the server.
Ê Remove the 3.5-inch HDD SAS / SATA backplane.
